Sensor-Manifold Absolute Pressure: Removal: 5.7L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: MAP Sensor Location - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

The Manifold Absolute Pressure (MAP) sensor (3) is mounted into the top/rear of the intake manifold (4) near the cowl/hood seal (1).

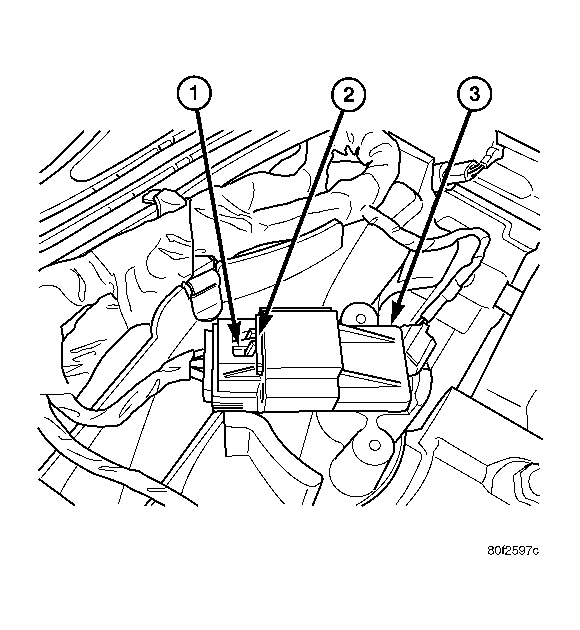

Fig 2: Removing/Installing MAP Sensor - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect electrical connector at sensor by sliding release lock out (1). Press down on lock tab (2) for removal.
Rotate sensor 1/4 turn counter-clockwise for removal.
Check condition of sensor o-ring.
