Sensor-Manifold Absolute Pressure: Installation: 5.7L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

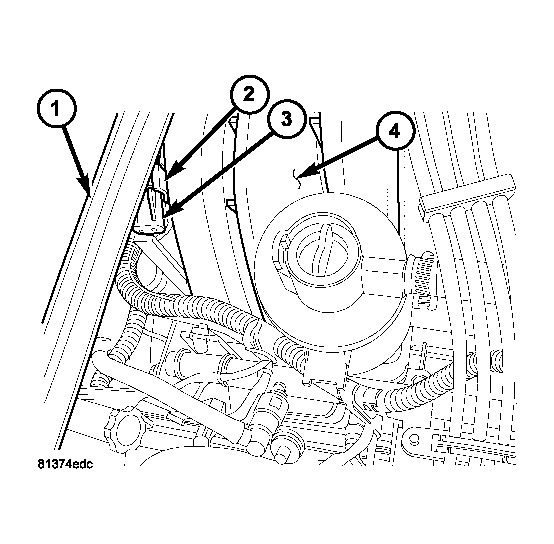

Fig 1: MAP Sensor Location - 5.7L
GC0013147Courtesy of DAIMLERCHRYSLER CORP.
  1. Clean MAP sensor mounting hole at intake manifold.
  2. Check MAP sensor o-ring seal for cuts or tears.
  3. Position sensor (3) into intake manifold.
  4. Rotate sensor 1/4 turn clockwise for installation.
  5. Connect electrical connector (2) to sensor (3).
