Sensor-Crankshaft Position: Removal: 6.1L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

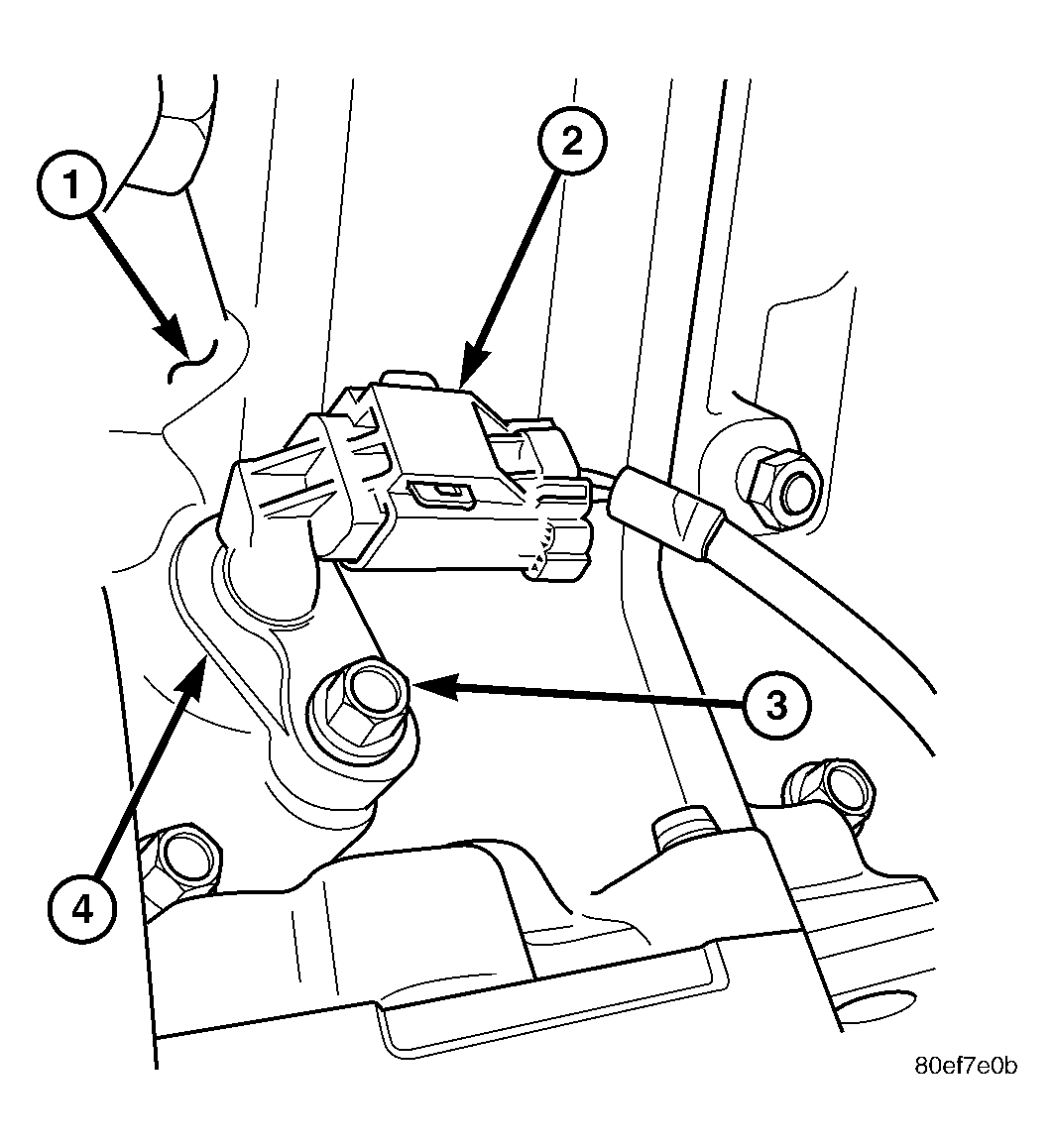

Fig 1: CKP Sensor Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

The Crankshaft Position (CKP) sensor (4) is located at the right-rear side of the engine cylinder block (1). It is positioned and bolted into a machined hole in the engine block.

IF STARTER IS MOUNTED TO RIGHT SIDE OF ENGINE: Disconnect and isolate negative battery cable.
Raise vehicle.
IF STARTER IS MOUNTED TO RIGHT SIDE OF ENGINE: Remove starter motor.
Disconnect CKP electrical connector (2) at sensor.
Remove CKP mounting bolt (3).
Carefully twist sensor from cylinder block.
Remove sensor from vehicle.
Check condition of sensor o-ring.
