Fuel Injection - Except Diesel: Pedal-Accelerator: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Remove/Install Pedal

Courtesy of DAIMLERCHRYSLER CORP.

Install pedal assembly to mounting studs.
Install nuts.
Tighten mounting nuts to 34 N.m (25 ft. lbs.).

Fig 2: Cable Attachment to Accelerator Module
Courtesy of DAIMLERCHRYSLER CORP.
Connect electrical connector to assembly, if equipped with adjustable pedals perform the Synchronization of brake pedal to accelerator pedal.
Connect negative battery cable.

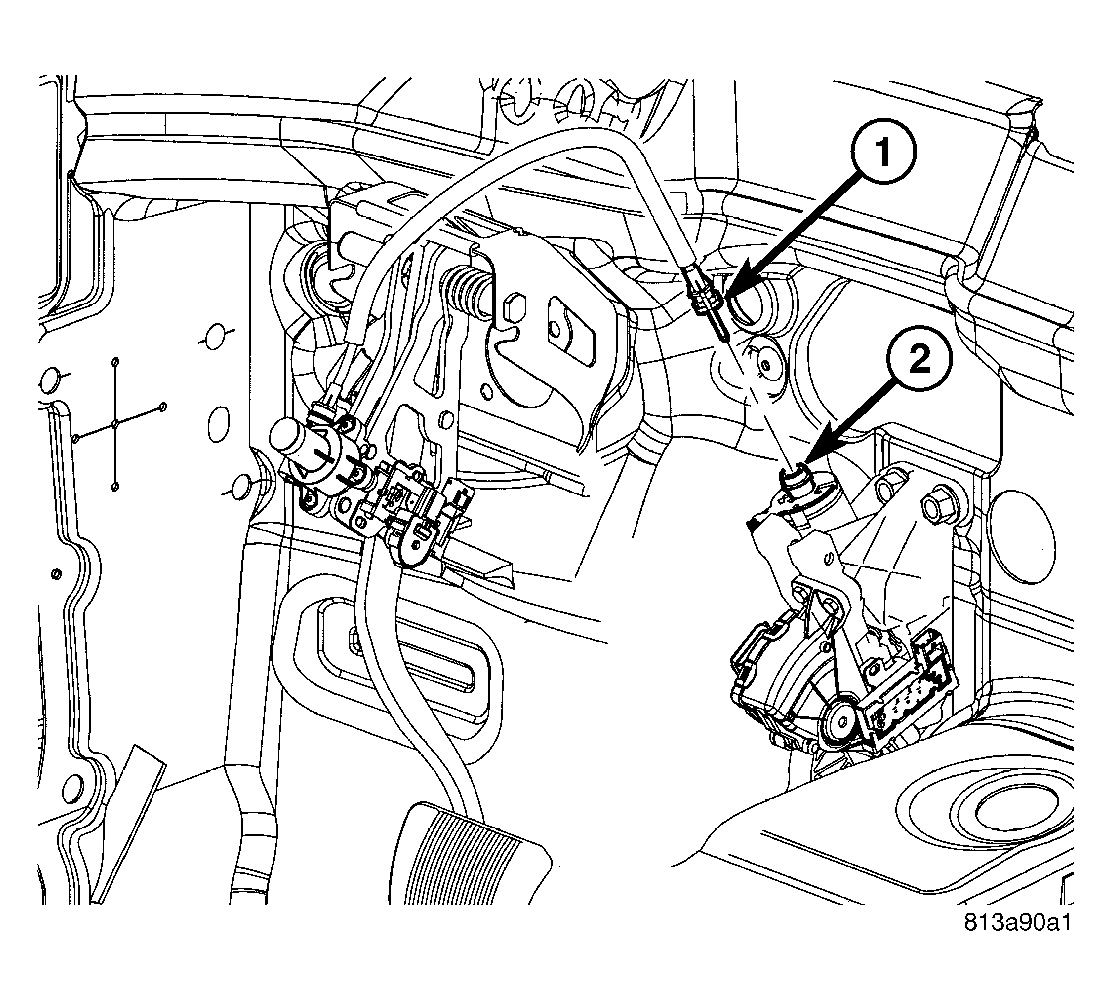

Synchronize brake pedal to accelerator pedal, then connect adjuster cable (1) to adjuster motor (2). (Refer to BRAKES/HYDRAULIC/MECHANICAL/PEDAL - STANDARD PROCEDURE) .
