Fuel Injection - Except Diesel: Injector-Fuel: Removal: 5.7L/6.1L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

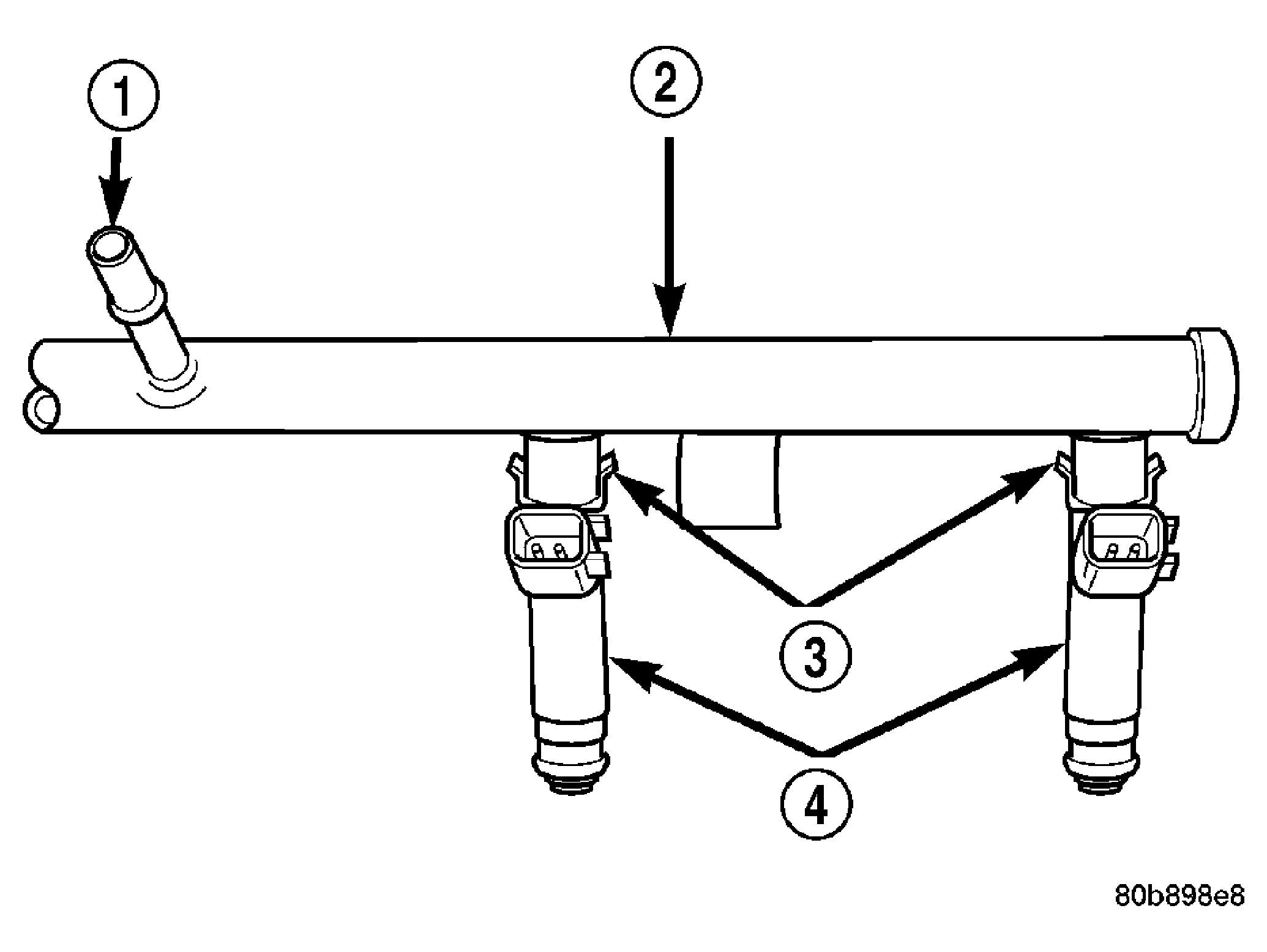

Fig 1: Fuel Injector Mounting-Typical

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: THE FUEL SYSTEM IS UNDER CONSTANT PRESSURE EVEN WITH ENGINE OFF. BEFORE SERVICING FUEL INJECTOR(S), FUEL SYSTEM PRESSURE MUST BE RELEASED.

To remove one or more fuel injectors, the fuel rail assembly must be removed from engine.

Perform STANDARD PROCEDURE - FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
Remove fuel injector rail (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL RAIL - REMOVAL) .
Remove clip(s) (3) retaining injector(s) (4) to fuel rail.
Remove injector(s) from fuel rail.
