Sensor-Mass Air Flow (MAF): Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

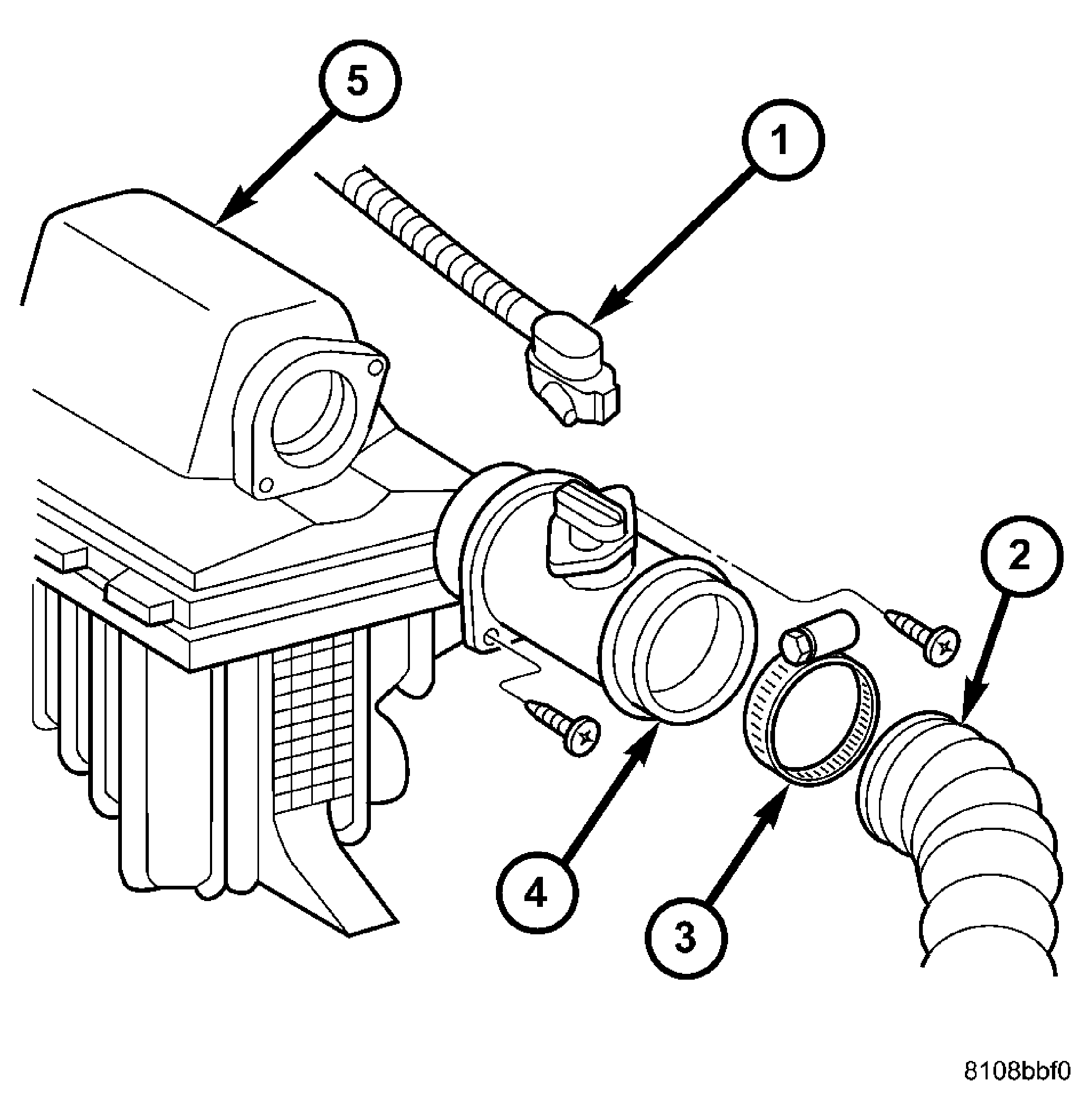

| 1 - WIRING HARNESS |
| 2 - AIR INTAKE HOSE |
| 3 - CLAMP |
| 4 - MAF SENSOR |
| 5 - AIR CLEANER HOUSING |
- Position the MAF sensor (4) to air cleaner housing (5) and install the retaining screws. See Fig 1.
- Connect the air intake hose (2) to the MAF sensor and tighten clamp (3).
- Connect the MAF wiring harness connector (1).
- Connect negative battery cable.
