Fuel Delivery - Except Diesel: Rail-Fuel: Removal: 2.7L
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
RELEASE FUEL SYSTEM PRESSURE BEFORE SERVICING FUEL RAIL. SERVICE VEHICLES IN WELL VENTILATED AREAS AND AVOID IGNITION SOURCES. NEVER SMOKE WHILE SERVICING THE VEHICLE.
- Release fuel system pressure. Refer to STANDARD PROCEDURE - FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
- Disconnect the negative battery cable.
- Remove intake manifold plenum. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL ).
- Cover intake manifold to prevent foreign material from entering engine.
- Disconnect fuel supply tube quick connect fitting at the rear of the fuel rail, (Refer to FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD PROCEDURE) .

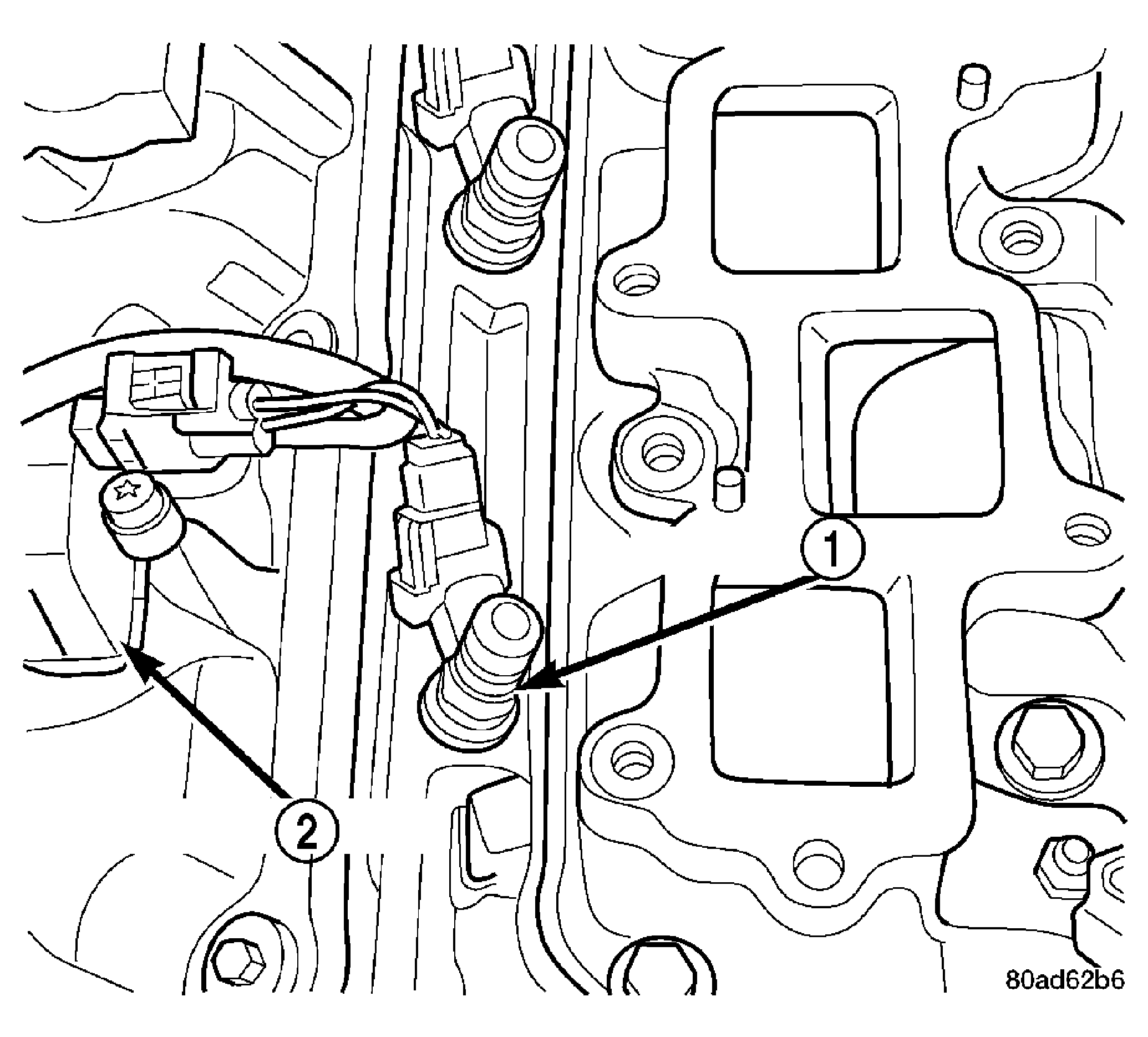

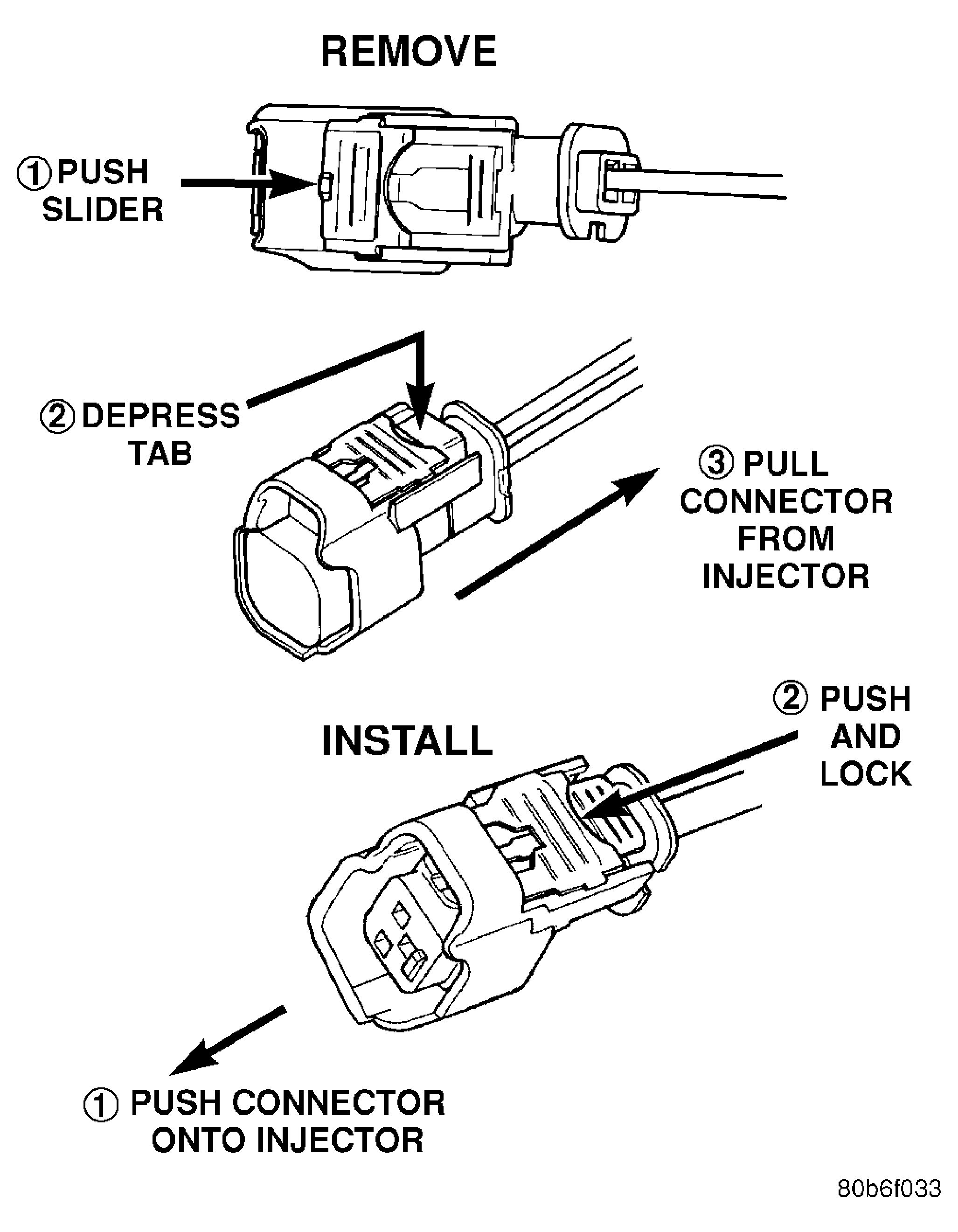

- Disconnect electrical connectors at fuel injectors. Refer to Fig 1. Push red colored slider away from injector (1). While pushing slider, depress tab (2) and remove connector (3) from injector. The factory fuel injection wiring harness is numerically tagged (INJ 1, INJ 2, etc.) for injector position identification. If harness is not tagged, note wiring location before removal.
- Remove mounting bolts on both sides of fuel rail.
- Lift fuel rail straight up off of cylinder head.
- Remove retaining clips from fuel injectors at fuel rail.
- Remove fuel injector from fuel rail.
