Section 285 (2.7L Engine (Service Information)): Description: Description
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

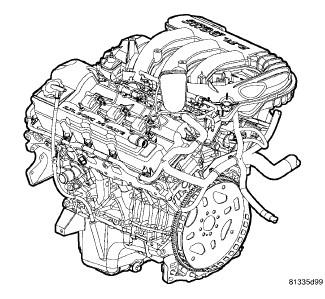

The 2.7 Liter (167 Cubic Inches) 60 degree V6 engine is a double overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train.

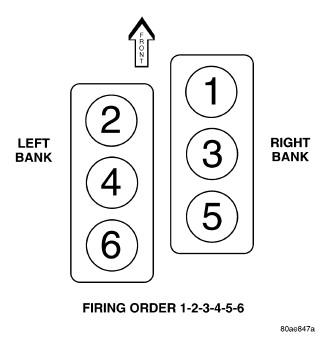

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. The firing order is 1-2-3-4-5-6.

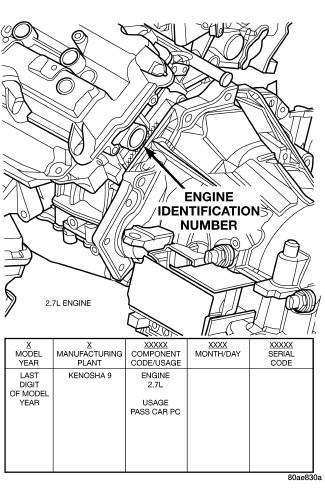

The engine identification number is located on the rear of the cylinder block just below the left cylinder head
