SENSOR, Knock: Installation: 3.5L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

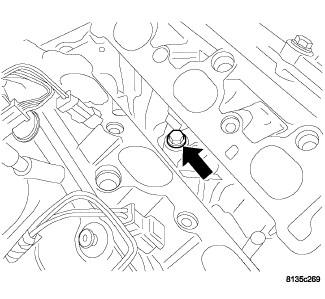

Fig 1: KNOCK SENSOR LOCATION

Courtesy of CHRYSLER LLC

CAUTION: Over or under tightening effects knock sensor performance, possibly causing improper spark control.

Install knock sensor and tighten to 20 N.m (15 ft. lbs.).

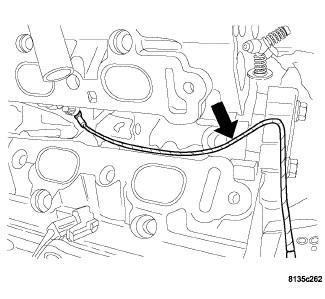

Fig 2: KNOCK SENSOR WIRE ROUTE
Courtesy of CHRYSLER LLC
Route the knock sensor wire in the proper location.
Install the intake manifold. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation

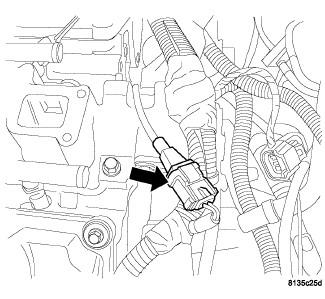

Fig 3: KNOCK SENSOR CONNECTOR
Courtesy of CHRYSLER LLC
Connect electrical connector .
Connect negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
