CAPACITOR, Ignition: Removal: 6.1L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

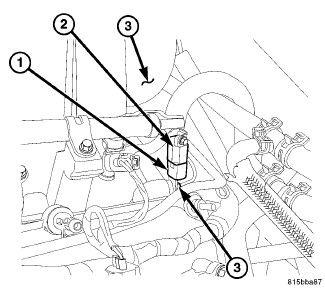

Fig 1: CAPACITOR - 6.1L
GC0080072Courtesy of CHRYSLER LLC

The ignition capacitor (2) is attached to the left-rear corner of the intake manifold (3).

  1. Disconnect and isolate the negative battery cable.
  2. Remove electrical connector (1).
  3. Remove mounting bolt and remove capacitor (2).
