2.7L 1st

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

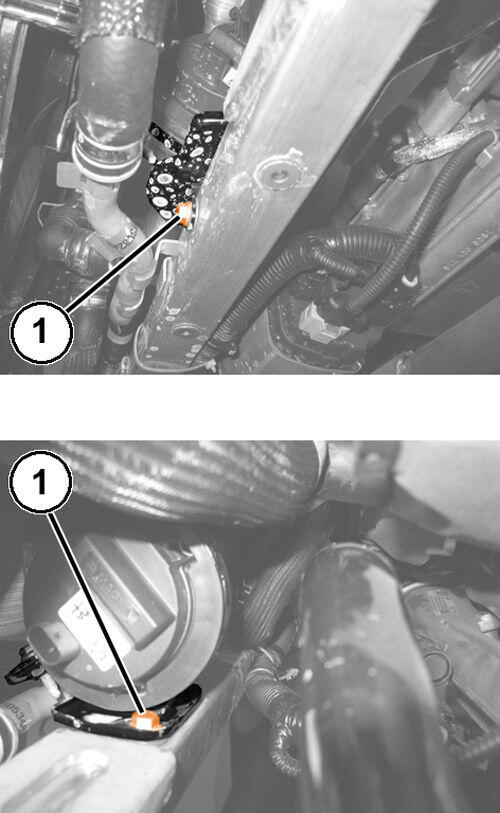

Fig 1: IGNITION COIL CAPACITOR 2.7L
GC0080069Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the electrical connector.
  3. Remove nut and capacitor.
