Rear Center - Sedan

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

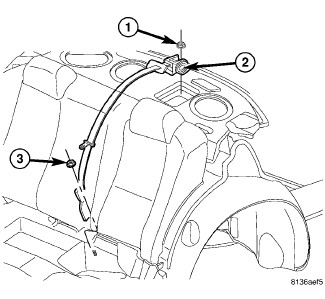

Fig 1: Rear Center Seat Belt

Courtesy of CHRYSLER LLC

Place the rear center retractor (2) into position and install the one retaining nut (1). Torque nut to 34 N.m (25 ft. lbs.).

Fig 2: Removing/Installing Rear Shelf Trim Panel
Courtesy of CHRYSLER LLC
Install the rear shelf trim panel. Refer to Body/Interior/PANEL, Rear Shelf - Installation .

Fig 3: Rear Center Seat Belt
Courtesy of CHRYSLER LLC
Install the one nut (3) to the seat belt lower anchor. Torque nut to 34 N.m (25 ft. lbs.).
Install the rear seat cushion. Refer to Body/Seats/COVER, Seat Cushion - Installation .
