RETRACTOR, Seat Belt: Installation: Installation: Front

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

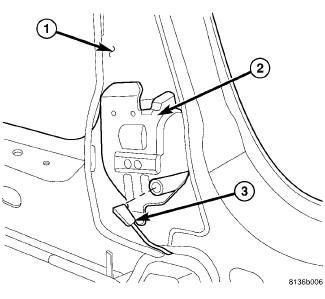

Fig 1: Front Seat Belt Retractor

Courtesy of CHRYSLER LLC

Position the retractor in the B-pillar (1) with the indexing tabs (2).
Install the one front seat belt retractor (4) retaining bolt (3). Torque bolt to 32 N.m (24 ft. lbs.).
Install the one screw between the upper retractor indexing tabs (2) in B-pillar.

Fig 2: Seat Belt Tensioner
Courtesy of CHRYSLER LLC
Connect the tensioner (2) squib connector (3).

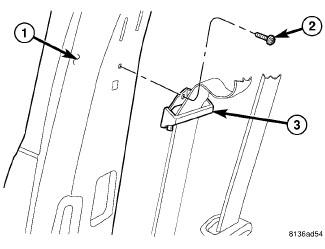

Fig 3: Front Seat Belt Web Guide
Courtesy of CHRYSLER LLC
Install the one screw (2) to the front seat belt web guide (3). Torque screw to 3 N.m (20 in. lbs.).

Fig 4: Trim Cover
Courtesy of CHRYSLER LLC
Position the upper turning loop (3) and install the retaining bolt (4). Torque bolt to 40 N.m (30 ft. lbs.).
Install the upper turning loop (3) trim cover (2).

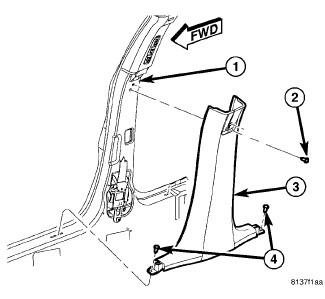

Fig 5: Removing/Installing Lower B-Pillar Trim
Courtesy of CHRYSLER LLC
Install the lower B-pillar trim. Refer to Body/Interior/PANEL, B-Pillar Trim - Installation .

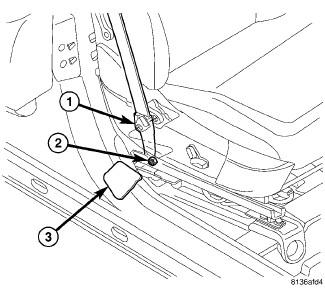

Fig 6: Front Seat Belt
Courtesy of CHRYSLER LLC
Position the seat belt (1) onto the stud on the seat cushion frame and install the lower anchor nut (2). Torque nut to 37 N.m (27 ft. lbs.).
Install the trim cover (3) onto the seat cushion outboard trim cover.
WARNING: Do not connect the battery negative cable. See Restraints - Diagnosis and Testing . Personal injury or death may result if the system test is not performed first.
