AIR BAG, Seat: Installation: Installation
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

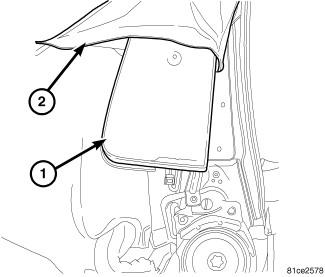

- Carefully slide the seat airbag (1) into the nylon pouch (2) integral to the outboard side of the front seat back. Make sure the locating tab on the upper portion of the air bag locks securely into the side of the seat frame, then secure the air bag to the seat frame using air bag retaining screw.

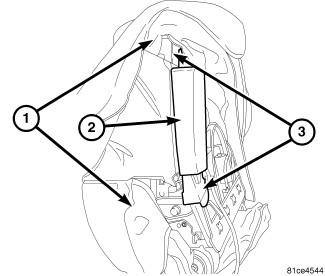

- Position the seat airbag and trim (2) cover as a unit to the outboard side of the seat back frame and install the attaching fasteners (3) and reposition the foam (1).

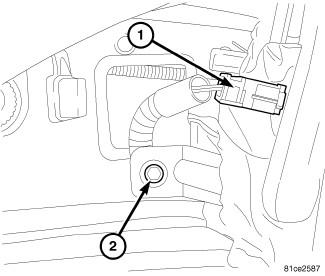

- Reconnect the seat wire harness (1) connector to the seat airbag inflator. Be certain that the connector latches and lock are fully engaged.
- Reinstall the trim onto the front and back of the front seat back. Refer to Body/Seats/COVER, Seat Back - Installation
- Reinstall the front seat into the vehicle. Refer to Body/Seats/SEAT - InstallationWARNING: Do not connect the battery negative cable. See Restraints - Diagnosis and Testing . Personal injury or death may result if the system test is not performed first.
