ADJUSTER, Seat Belt Turning Loop, Front: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Trim Cover

Courtesy of CHRYSLER LLC

Remove the upper turning loop (3) trim cover (2).
Remove the upper turning loop retaining bolt (4).

Fig 2: Removing/Installing Upper B-Pillar Trim
Courtesy of CHRYSLER LLC
Remove the upper B-pillar trim. Refer to Body/Interior/PANEL, B-Pillar Trim - Removal .

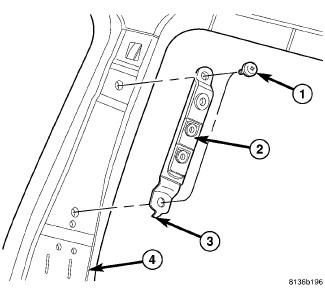

Fig 3: Seat Belt Height Adjuster
Courtesy of CHRYSLER LLC
Remove the two bolts (1) to the seat belt height adjuster (2).
