TRAY, Battery: Installation: Installation
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

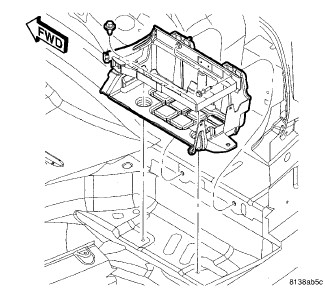

- Position the battery tray in the vehicle and install the mounting fasteners.

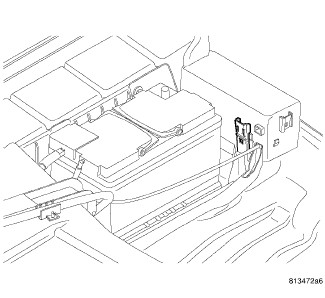

- Position the Power Distribution Center (PDC) onto the battery tray mounting tabs. Gently apply downward pressure on the PDC until it snaps into place.
- Install the battery. See Electrical/Battery System/BATTERY - Installation .
