COVER, Seat Back, Front: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: HANDLES AND SHIELDS

Courtesy of CHRYSLER LLC

Before proceeding with the following repair procedure, review all warnings and cautions. See Body/Seats - Warning
Remove the front seat. See Body/Seats/SEAT - Removal
Remove the lumbar and recliner handles (1).
Remove the screws and remove the side shields (2).

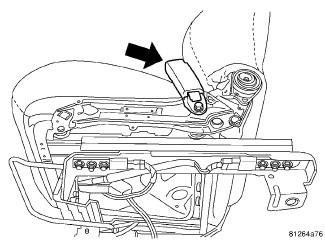

Fig 2: BUCKLE
Courtesy of CHRYSLER LLC
Remove the belt buckle.

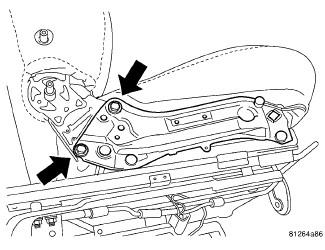

Fig 3: BACK BOLTS
Courtesy of CHRYSLER LLC
Remove the seat back bolts from both sides.

Fig 4: HEAD REST
Courtesy of CHRYSLER LLC
Push in the buttons on both headrest sleeves, pull the headrest up and remove.

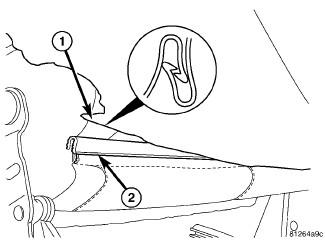

Fig 5: ZIP STRIP
Courtesy of CHRYSLER LLC
Separate the j-straps (1 AND 2) and pull cover up over frame and remove cushion.
Pinch both headrest sleeve ribs from inside the seat back frame with pliers or equivalent.
Strike the bottom of the sleeve with a rubber mallet or equivalent, and remove the headrest sleeves.
