PLATE, Scuff, Liftgate: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

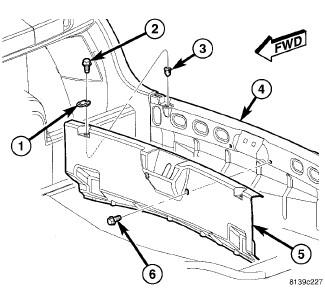

Fig 1: Liftgate Scuff Plate
GC0080748Courtesy of CHRYSLER LLC
  1. Remove the two screws (2) that secure the tie-down loops (1) and the scuff plate trim panel (5) to the top of the liftgate opening lower panel (4).
  2. Remove the two screws (6) that secure the scuff plate trim panel to the inside of the liftgate opening lower panel.
  3. Remove the scuff plate trim panel from the vehicle.
