PANEL, C-Pillar Trim: Removal: Lower

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

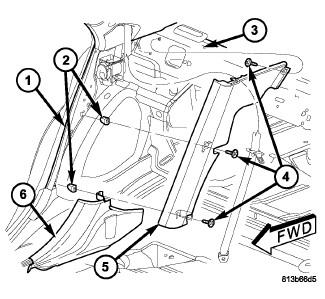

Fig 1: Upper/Lower Pillar Trim Panels
GC0094932Courtesy of CHRYSLER LLC
  1. Remove the rear seat cushion from the vehicle. See Body/Seats/COVER, Seat Cushion - Removal .
  2. Remove the rear seat back side bolster from the quarter inner panel (1).
  3. Remove the screw (4) that secures the upper end of the lower C-pillar trim (5) to the rear shelf panel (3).
  4. Remove the two screws that secure the lower C-pillar trim to the quarter inner panel.
  5. Remove the lower C-pillar trim from the quarter inner panel.
