MIRROR, Rearview: Removal: Removal
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- If the vehicle is equipped with either the electrochromic (automatic dimming) or the telematic (hands-free phone) mirror option, disconnect and isolate the battery negative cable.

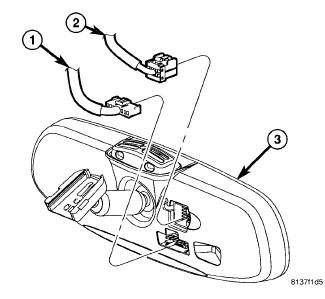

- If the vehicle is so equipped, disconnect the electrochromic mirror takeout and connector (1) and/or the telematic mirror takeout and connector (2) of the headliner wire harness from the connector receptacle on the back (windshield side) of the mirror housing (3).
- Remove the set screw (3) that secures the rear view mirror (2) to the support bracket/button (1) on the inside of the windshield glass.
- Slide the rear view mirror upward far enough to disengage it from the support bracket/button.
