Trunk - Sedan

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

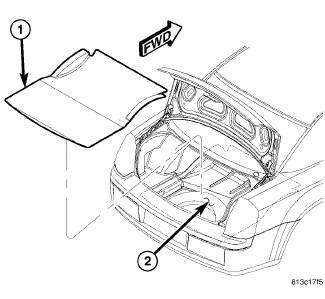

Fig 1: Spare Tire Cover/Trunk Floor Carpet
GC0080737Courtesy of CHRYSLER LLC
  1. If equipped, remove the cargo liner and/or cargo net from the luggage compartment.
  2. Fold and remove the spare tire cover/trunk floor carpet (1) from over the spare tire well (2).
