Section 281 (Body - Interior & Exterior): Interior: Carpet: Removal: Front

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Close And Lock Tonneau Cover (Close Top) Operation Chart

Courtesy of CHRYSLER LLC

NOTE: The front carpet consists of two individual carpets, one for the driver side and one for the passenger side. These carpets can be removed from and installed into the vehicle individually.

Remove the driver and/or passenger front seat from the vehicle as appropriate. See Body/Seats/SEAT - Removal .
Remove the center console from the front floor panel transmission tunnel. See Body/Interior/CONSOLE, Floor - Removal .
Remove the trim from the driver or passenger side lower cowl side inner panel as appropriate. See Body/Interior/PANEL, Cowl Trim - Removal .

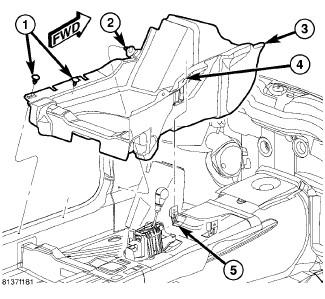

Remove the two push-pin fasteners (1) that secure the outboard edge of the front carpet (3) to the front door opening sill.
On the driver side only, remove the push-pin fastener (2) that secures the front carpet to the cowl side inner panel above the foot rest.

Fig 2: Front Carpet Push-Pin Fastener (Driverside Only)
Courtesy of CHRYSLER LLC

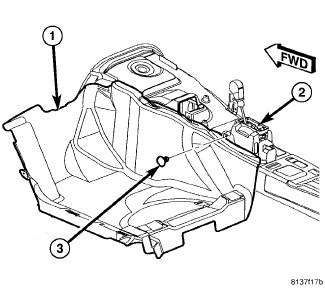

On the driver side only, remove the push-pin fastener (3) that secures the inboard edge of the front carpet (1) to the transmission shifter bracket (2).
Remove the front carpet from the floor panel.
