Cargo Area - Wagon

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

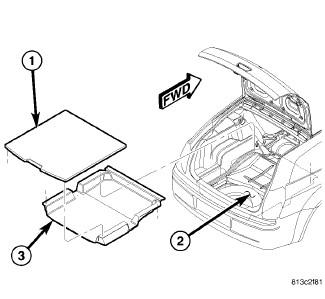

Fig 1: Spare Tire Cover/Cargo Compartment Carpet
GC0080738Courtesy of CHRYSLER LLC
  1. If equipped, remove the cargo net from the rear cargo area.
  2. Fold and remove the cargo floor carpet (1) from the rear cargo area.
  3. If equipped, remove the cargo liner and/or the cargo organizer from the cargo compartment.
  4. Fold and remove the spare tire cover/cargo compartment carpet (3) from over the spare tire well (2).
