BEZEL, Instrument Panel, Center: Removal: CHRYSLER

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

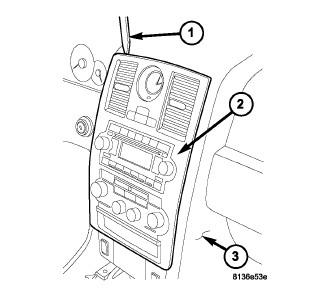

Fig 1: Bezel-Center Removal Chrysler

Courtesy of CHRYSLER LLC

Before proceeding with the following repair procedure, review all warnings and cautions.
Using a trim stick C-4755 or equivalent (1), remove the center bezel (2) from the instrument panel (3) by releasing the snap retainers from the instrument panel.

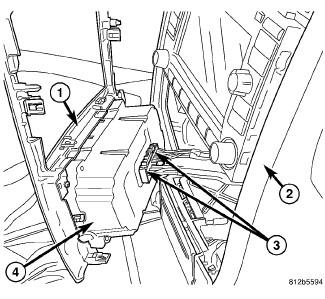

Fig 2: Removing/Installing A/C Heater Control Center Bezel
Courtesy of CHRYSLER LLC
Disconnect the electrical connectors (3) from the A/C - heater control (4) and the clock and remove the center bezel (1) from the vehicle.
