BEZEL, Instrument Cluster: Removal: Dodge
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding with the following repair procedure, review all warnings and cautions.
- Remove the steering column opening cover. See Body/Instrument Panel/COVER, Steering Column Opening - Removal

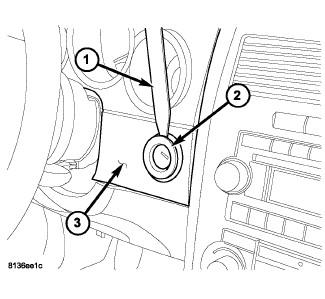

- Using a trim stick C-4755 or equivalent (1), gently pry between the ignition switch bezel (2) and the instrument cluster bezel (3) to release the snap retainers that secure the switch bezel.
- Disconnect the wire harness connector from the headlamp switch (4) and remove the cluster bezel from the vehicle.
- Using a trim stick C-4755 or equivalent (1), gently pry between the cluster bezel (2) and the instrument panel (3) to release the snap clip retainers that secure the cluster bezel.
- If required, remove the headlamp switch from the cluster bezel. Refer to Electrical/Lamps/Lighting - Exterior/SWITCH, Headlamp - Removal .
- Remove the ignition switch bezel from the vehicle.
