BEZEL, Instrument Cluster: Removal: CHRYSLER

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

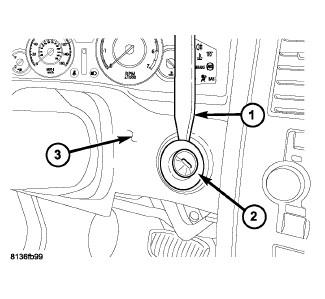

Fig 1: Bezel-Ignition Switch Remove Chrysler

Courtesy of CHRYSLER LLC

Before proceeding with the following repair procedure, review all warnings and cautions.
Using a trim stick C-4755 or equivalent (1), gently pry between the ignition switch bezel (2) and the instrument cluster bezel (3) to release the snap retainers that secure the switch bezel.
Remove the ignition switch bezel from the vehicle.

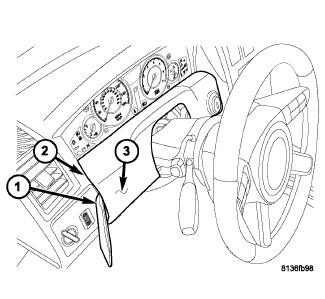

Fig 2: Bezel-Cluster Remove Chrysler
Courtesy of CHRYSLER LLC
Using a trim stick C-4755 or equivalent (1), gently pry between the instrument panel (2) and the cluster bezel (3) to release the snap clip retainers that secure the cluster bezel.
