Section 281 (Body - Interior & Exterior): Exterior: Spoiler: Removal: 300/300C
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the lift gate upper trim panel. See Body/Decklid/Hatch/Liftgate/Tailgate/PANEL, Trim - Removal .

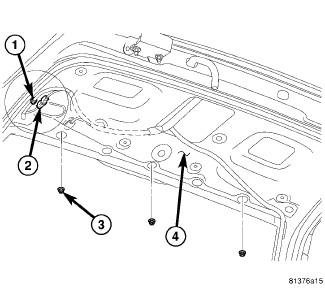

- Disconnect the rear washer fluid supply hose (1).
- Disconnect the CHMSL wire harness connector (2).
- Remove the nuts (3) that secure the rear spoiler to the liftgate (4).
- Partially remove the rear spoiler (1) from the liftgate to access the wire harness and washer fluid supply hose (2).
- Remove the rubber grommet from the right top of the lift gate and route the wire harness and washer supply hose through the opening in the liftgate.
- Remove rear spoiler from the vehicle.
