MIRROR, Outside Rearview: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

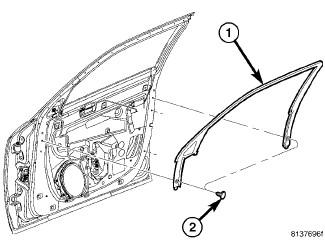

Fig 1: UPPER DOOR TRIM
GC0080692Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Partially remove the door trim panel as necessary to gain access to the mirror. See Body/Door - Front/PANEL, Door Trim - Removal .
  3. Remove the two push pins (2) that secure the window trim molding (1) to the front door.
  4. Remove the window trim molding to gain access to the mirror fasteners.

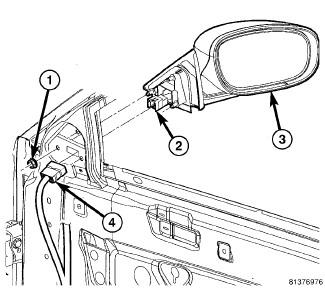

    Fig 2: OUTSIDE MIRROR
    GC0080693Courtesy of CHRYSLER LLC
  5. Disconnect the door wire harness connector (4) from the mirror electrical connector (2).
  6. Remove the three nuts (1) that secure the outside rearview mirror (3) to the front door.
  7. Remove the outside rearview mirror from the front door.
