COVER, Cowl Panel: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

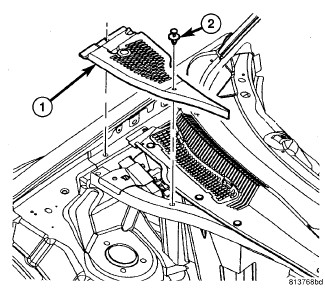

Fig 1: COWL PANEL 1
GC0080682Courtesy of CHRYSLER LLC
  1. Remove the two push pins (2) that secure the front cowl top panel (1) to the right rear corner of the engine compartment
  2. Remove the front cowl top panel.
    Fig 2: COWL PANEL 2
    GC0080264Courtesy of CHRYSLER LLC
  3. Remove the windshield wiper arms. Refer to Electrical/Wipers/Washers/ARM, Wiper - Removal .
  4. Remove the push-pin (2) that secures each end of the cowl top panel (1) to each front fender (7).
  5. Disengage the two 1/4-turn fasteners (3) that secure the cowl top panel to the dash panel (5).
  6. Remove the six push-pins (4) that secure the cowl top panel to the strut tower support (6).
  7. Disengage the integral retaining clips that secure the cowl top panel to the dash panel and remove the cowl panel from the engine compartment.
