Starter Motor: Removal: 3.5L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable
Install steering wheel holder locking steering wheel in straight-ahead position.
Raise vehicle and support.
Remove the underbody splash shield.

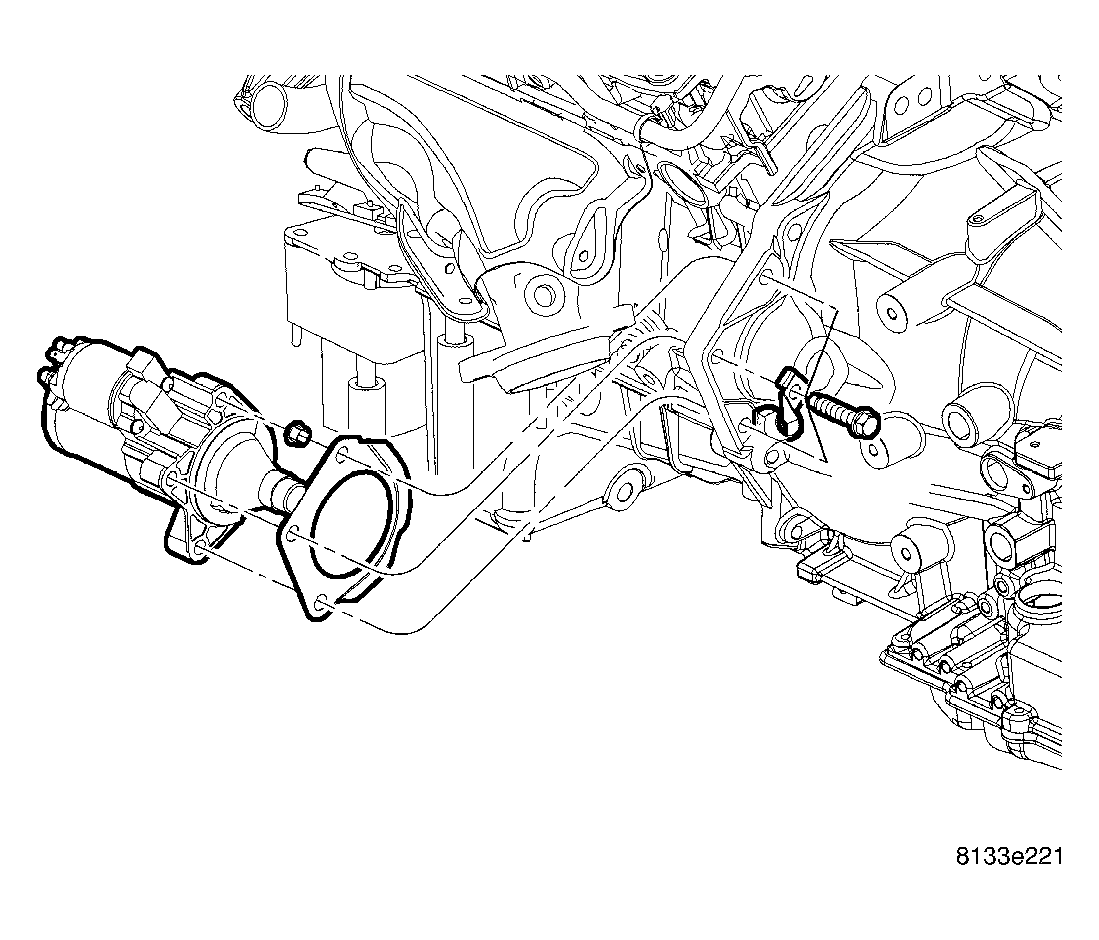

Fig 1: Identifying Starter Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Starter assembly.

Fig 2: Locating Steering Shaft Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the intermediate steering shaft center bolt.

Fig 3: Locating Steering Shaft Bolt Hole
Courtesy of DAIMLERCHRYSLER CORP.
Bolt removed.

Fig 4: Matching Intermediate Steering Shaft With Shaft Extension
Courtesy of DAIMLERCHRYSLER CORP.
Separate the intermediate steering shaft upper and lower shaft.

Fig 5: Disconnecting/Connecting Starter Cable
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connection from the starter.

Fig 6: Locating Starter Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 starter mounting bolts and wiring clip.

Fig 7: Positioning Starter
Courtesy of DAIMLERCHRYSLER CORP.
Pull starter forward and down.

Fig 8: Positioning Starter Around Exhaust & Intermediate Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Work starter up and around exhaust.

Fig 9: Positioning Starter Around Intermediate Steering Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Work starter past the intermediate steering shaft.

Fig 10: Removing/Installing Starting
Courtesy of DAIMLERCHRYSLER CORP.
Remove starter from vehicle.
