All Wheel Drive (AWD)

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

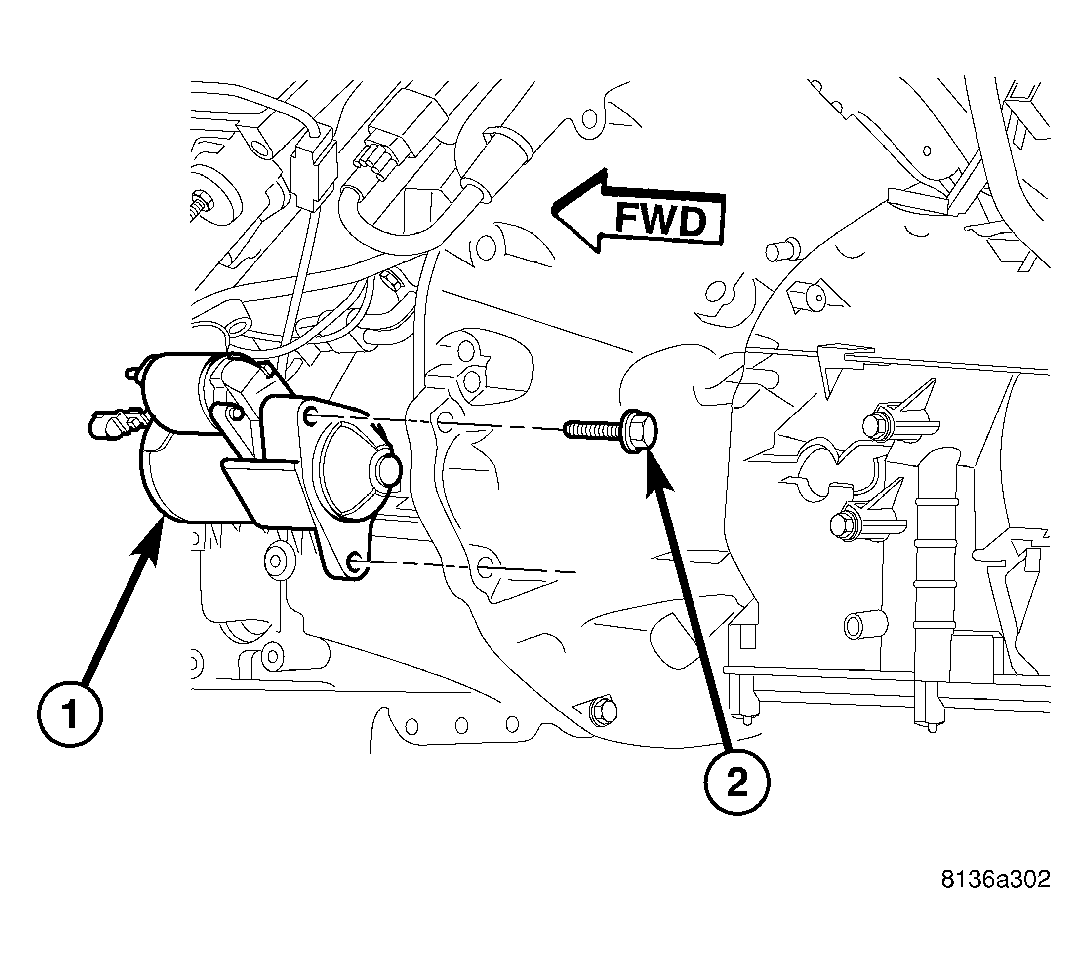

Fig 1: Removing And Installing Starter
GC0015658Courtesy of DAIMLERCHRYSLER CORP.
  1. Position starter (1) into transmission but do not install bolts.
  2. Connect solenoid wire to starter motor (snaps on).
  3. Position battery cable to solenoid stud. Install and tighten battery cable eyelet nut. Refer to SPECIFICATIONS . Do not allow starter motor to hang from wire harness.
  4. Install and tighten both mounting bolts (2). Refer to SPECIFICATIONS .
  5. Install steering gear assembly and mounting bolts. Install steering column coupling bolt (pinch bolt). Refer to STEERING for torque specifications.
  6. Install steering gear heat-shield.
  7. Lower vehicle.
  8. Connect negative battery cable.
