Front Section

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

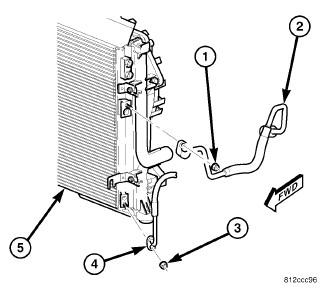

Fig 1: LINE-A/C DISCHARGE R AND I
GC0081077Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Recover the refrigerant from the refrigerant system. See Heating and Air Conditioning/Plumbing - Standard Procedure .
  3. Remove the air cleaner housing. Refer to Engine/Air Intake System/BODY, Air Cleaner - Removal .
  4. Raise and support the vehicle.
  5. Remove the front belly pan. Refer to Frame and Bumpers/Under Body Protection/BELLY PAN - Removal .
  6. Remove the nut (3) that secures the front section of the A/C liquid line (4) to the A/C condenser (5).
  7. Disconnect the A/C liquid line from the A/C condenser and remove and discard the dual plane seal.
  8. Install plugs in, or tape over the opened liquid line fitting and condenser outlet port.
    Fig 2: LINE-A/C LIQUID FRONT R AND I
    GC0081079Courtesy of CHRYSLER LLC
    NOTE: LHD model shown in illustration. RHD model similar.
  9. Lower the vehicle.
  10. Remove the nut (1) that secures the front section of the A/C liquid line (2) to the rear section of the liquid line (3).
  11. Disconnect the front section of the A/C liquid line from the rear section of the liquid line and remove and discard the dual plane seal.
  12. Install plugs in, or tape over the opened liquid line fittings.
  13. Remove the front section of the A/C liquid line from the engine compartment.
