SENSOR, Sun: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

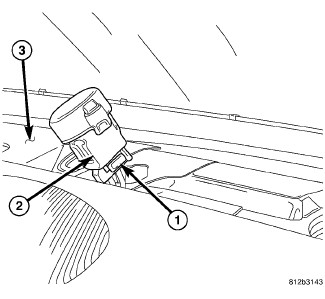

Fig 1: Sun Sensor-Wire Connector
GC0081020Courtesy of CHRYSLER LLC
  1. Position the sun sensor assembly (2) near the instrument panel (3).
  2. Connect the wiring harness connector (1) to the sun sensor assembly (2).

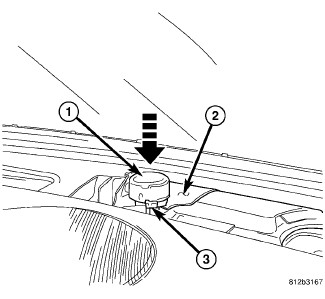

    Fig 2: Sun Sensor-Install
    GC0081021Courtesy of CHRYSLER LLC
  3. Align the tab on the sun sensor assembly (1) with the opening in the instrument panel (2).
  4. Gently push the sun sensor assembly into the instrument panel until the sensor snap clip retainers (3) are securely engaged.
  5. Install the defroster grille. Refer to Body/Instrument Panel/GRILLE, Defroster - Installation .
  6. Reconnect the negative battery cable.
