Throttle Body (Gas) Connector End View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jeep Patriot, 2009 Jeep Compass, 2008 Jeep Patriot, 2008 Jeep Compass, and 2007 Jeep Patriot. However, it is still accessible from the selected car via links, so may be relevant.

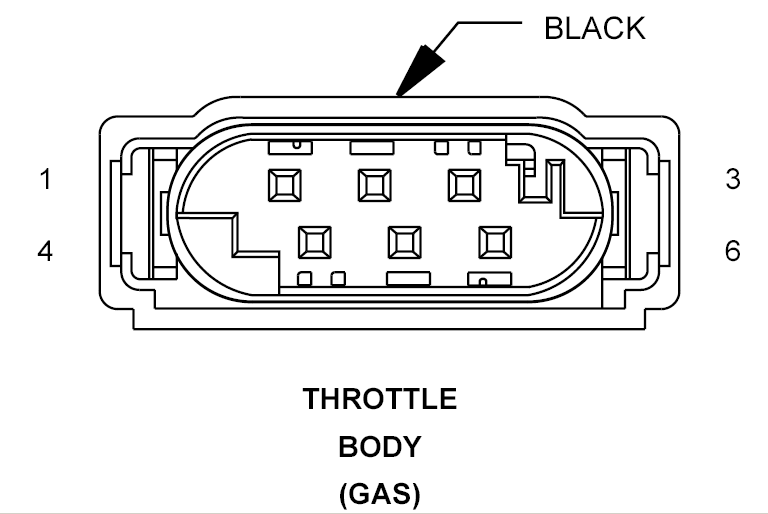

THROTTLE BODY - BLACK 6 WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K124 20DB/GY	ETC MOTOR (+)
2	K922 20BR	TP SENSOR GROUND
3	F855 20PK/YL	5 VOLT SUPPLY
4	K126 20DB/LG	ETC MOTOR (-)
5	K22 20BR/OR	TP SIGNAL 1
6	K122 20DG/BR	TP SIGNAL 2
