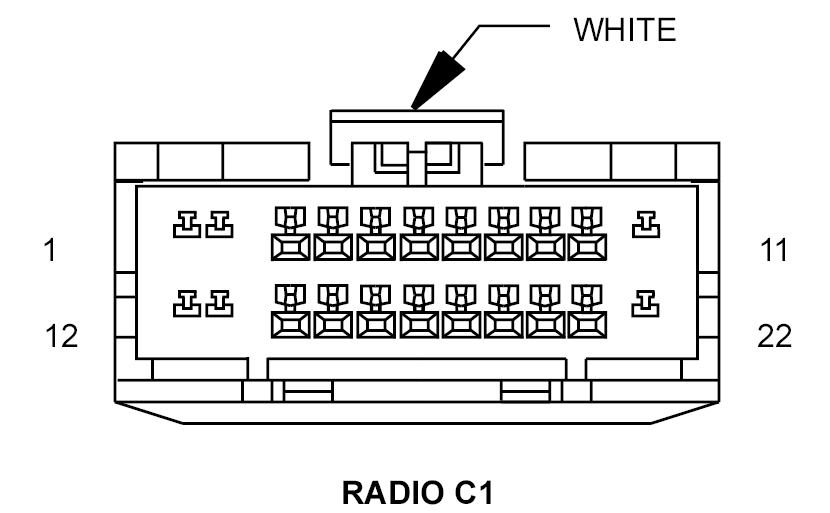

Radio Connector End View (C1)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jeep Patriot, 2009 Jeep Compass, 2008 Jeep Patriot, 2008 Jeep Compass, and 2007 Jeep Patriot. However, it is still accessible from the selected car via links, so may be relevant.
RADIO C1 - WHITE 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A413 18RD/LB | FUSED B(+) (I.O.D.) |
| 2 | - | - |
| 3 | - | - |
| 4 | X703 22DG/OR | LEFT AUDIO OUTPUT (HANDS FREE) |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | D54 20WT/PK | CAN B BUS (-) |
| 7 | X202 18DG/VT | RIGHT FRONT DOOR SPEAKER (+) (BASE) |
| 8 | X292 18DG/YL | RIGHT FRONT DOOR SPEAKER (-) (BASE) |
| 9 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 10 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 11 | Z937 16BK/YL | GROUND |
| 12 | A413 18RD/LB | FUSED B(+) (I.O.D.) |
| 13 | X60 20GY/RD | POWER ANTENNA SIGNAL (PREMIUM) |
| 14 | - | - |
| 15 | - | - |
| 16 | X704 22DG/PK | RIGHT AUDIO OUTPUT (HANDS FREE) |
| 17 | X795 22DG/BK | COMMON AUDIO OUTPUT (HANDS FREE) |
| 18 | X51 18DG/DB | LEFT REAR SPEAKER (+) |
| 19 | X57 18DG/BR | LEFT REAR SPEAKER (-) |
| 20 | X58 18GY/OR | RIGHT REAR SPEAKER (-) |
| 21 | X52 18GY/DB | RIGHT REAR SPEAKER (+) |
| 22 | Z937 16BK/YL | GROUND |
