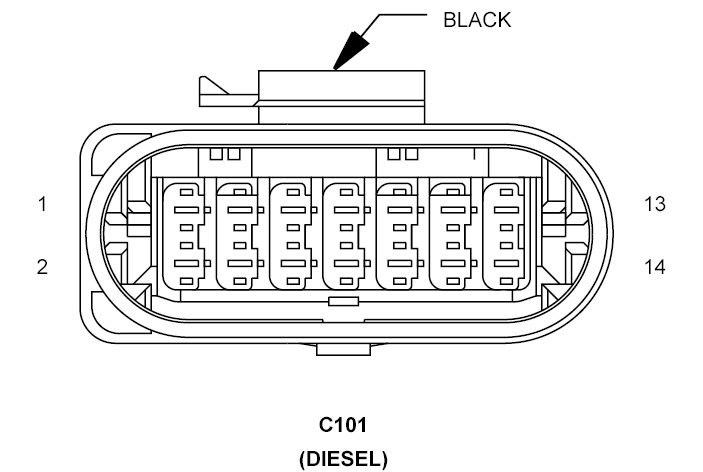

Inline (Diesel) Connector End View (C101)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jeep Patriot, 2009 Jeep Compass, 2008 Jeep Patriot, 2008 Jeep Compass, and 2007 Jeep Patriot. However, it is still accessible from the selected car via links, so may be relevant.
C101 - BLACK 14 WAY (DIESEL) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | K844 20DB/YL | CMP SENSOR 5 VOLT SUPPLY |
| 2 | K44 20DB/GY | CMP 1/1 SIGNAL |
| 3 | K944 20BK/GY | CMP SENSOR GROUND |
| 4 | K853 20DB/BR | CKP SENSOR 5 VOLT SUPPLY |
| 5 | K24 20BR/DB | CKP SENSOR SIGNAL |
| 6 | K925 20DB/GY | CKP SENSOR GROUND |
| 7 | G6 20VT/GY | EOP SIGNAL |
| 8 | F343 16BR/YL | FUSED MAIN RELAY OUTPUT (EXCEPT DPF) |
| 9 | K601 16BR/VT | EGR AIR FLOW CONTROL (EXCEPT DPF) |
| 10 | K834 20DB/RD | EGR 5 VOLT SUPPLY (DPF) |
| 10 | K604 20BR/WT | EGR AIR FLOW SIGNAL (EXCEPT DPF) |
| 11 | K934 20RD/DB | EGR SENSOR GROUND (DPF) |
| 11 | Z909 16BK | GROUND (EXCEPT DPF) |
| 12 | K683 20RD/DG | EGR SIGNAL (DPF) |
| 13 | K684 16RD | EGR CONTROL 2 (DPF) |
| 14 | K682 16BR/RD | EGR CONTROL 1 (DPF) |
C101 - BLACK 14 WAY (DIESEL) MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | K844 20DB/YL | CMP SENSOR 5 VOLT SUPPLY |
| 2 | K44 20DB/GY | CMP 1/1 SIGNAL |
| 3 | K944 20BK/GY | CMP SENSOR GROUND |
| 4 | K853 20DB/BR | CKP SENSOR 5 VOLT SUPPLY |
| 5 | K24 20BR/LB | CKP SENSOR SIGNAL |
| 6 | K925 20DB/GY | CKP SENSOR GROUND |
| 7 | G6 16VT/GY | EOP SIGNAL (DPF) |
| 7 | G6 20DB/LG | EOP SIGNAL (EXCEPT DPF) |
| 8 | F343 20DB/LG | FUSED MAIN RELAY OUTPUT (EXCEPT DPF) |
| 9 | K601 20BR/VT | EGR AIR FLOW CONTROL (EXCEPT DPF) |
| 10 | K834 20DB/LG | EGR 5 VOLT SUPPLY (DPF) |
| 10 | K604 20BR/WT | EGR AIR FLOW SIGNAL (EXCEPT DPF) |
| 11 | K934 20DB/WT | EGR SENSOR GROUND (DPF) |
| 11 | Z909 20BK/WT | GROUND (EXCEPT DPF) |
| 12 | K683 20DB/GY | EGR SIGNAL (DPF) |
| 13 | K684 18DB/YL | EGR CONTROL 2 (DPF) |
| 14 | K682 18DB/LB | EGR CONTROL 1 (DPF) |
