Dynamics Sensor (Electronic Stability Program) Connector End View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jeep Patriot, 2009 Jeep Compass, 2008 Jeep Patriot, 2008 Jeep Compass, and 2007 Jeep Patriot. However, it is still accessible from the selected car via links, so may be relevant.

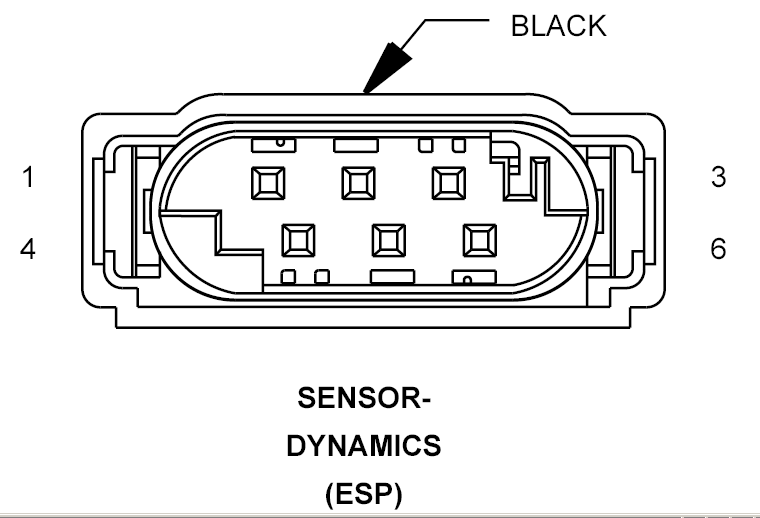

SENSOR-DYNAMICS - BLACK 6 WAY (ESP)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D464 20WT/YL	DYNAMICS SENSOR LOW DATA LINK
2	D465 20WT/DB	DYNAMICS SENSOR HIGH DATA LINK
3	G4 20VT/LB	DYNAMICS SENSOR SUPPLY
4	-	-
5	G94 20VT/DB	DYNAMICS SENSOR GROUND
6	-	-
