Testing For Continuity

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

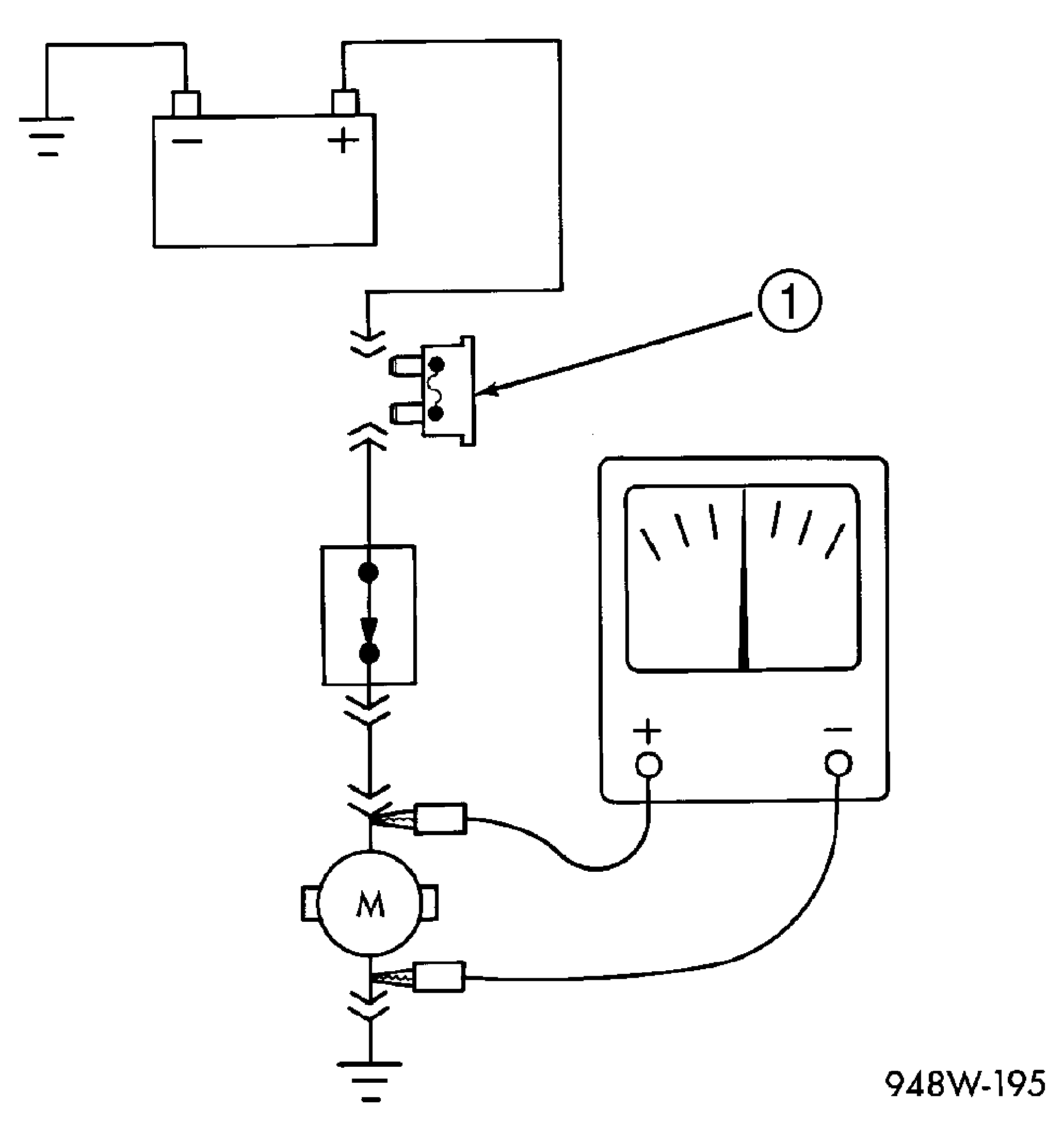

Fig 1: Testing for Continuity
GC0002524Courtesy of CHRYSLER LLC
1 - FUSE REMOVED FROM CIRCUIT
  1. Remove the fuse (1) for the circuit being checked or, disconnect the battery.
  2. Connect one lead of the ohmmeter to one side of the circuit being tested
  3. Connect the other lead to the other end of the circuit being tested. Low or no resistance means good continuity.
