Compass Variation Adjustment

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Compass variance, also known as magnetic declination, is the difference in angle between magnetic north and true geographic north. In some geographic locations, the difference between magnetic and geographic north is great enough to cause the compass to give false readings. If this problem occurs, the compass variance setting may need to be changed.

To set the compass variance:

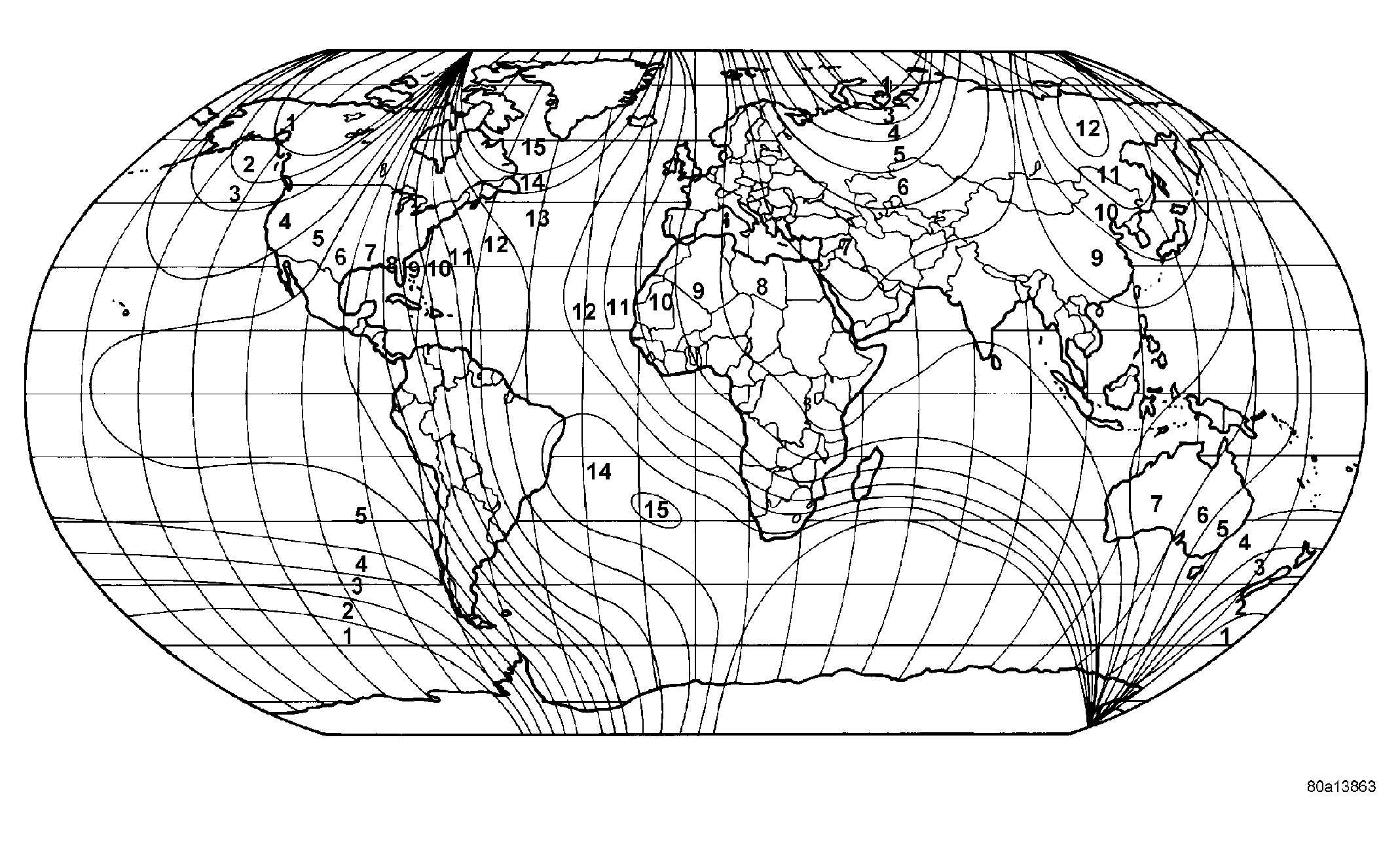

Fig 1: Variance Settings Map

Courtesy of CHRYSLER LLC

Using the Variance Settings map, find your geographic location and note the zone number.

Fig 2: EVIC Display
Courtesy of CHRYSLER LLC
Turn the ignition switch to the On position.
Depress and hold the C/T push button (3) for approximately two seconds.

Fig 3: EVIC Display
Courtesy of CHRYSLER LLC
Use the SCROLL buttons (3) until COMPASS VARIANCE is highlighted. The "COMPASS VARIANCE" message and the last variance zone number will be displayed.
Press and release the FUNCTION SELECT button (1) until the zone number for your geographic location appears in the display.

Fig 4: EVIC Display
Courtesy of CHRYSLER LLC
Depress and release the C/T push button (3) to exit.
Confirm that the correct directions are now indicated by the compass.
