Module - Remote Start Antenna

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

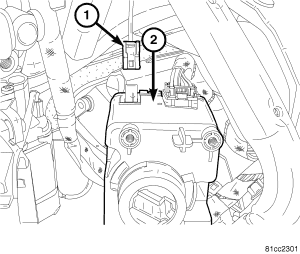

Fig 1: RSA ELECTRICAL CONNECTOR
GC0070297Courtesy of CHRYSLER LLC
WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

The remote start antenna is located on the passenger side above and to the left of glove box.

  1. Disconnect and isolate the battery negative cable.
  2. Remove screws from Wireless Ignition Node (WIN). Refer to REMOVAL .
  3. Remove the coaxial electrical cable connector (1) from WIN (2).

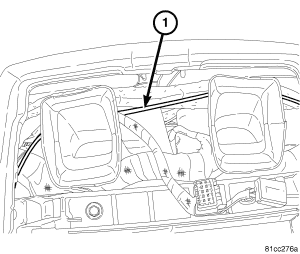

    Fig 2: RSA ROUTING
    GC0070298Courtesy of CHRYSLER LLC
  4. Remove center bezel. Refer to REMOVAL .
    NOTE: During removal of the remote start antenna note the routing location of the coaxial cable.
  5. Remove the remote start antenna coaxial cable from mounting clips, if equipped.
    Fig 3: RSA MODULE AT DASH
    GC0070299Courtesy of CHRYSLER LLC
  6. Remove glove box. Refer to REMOVAL .
  7. Remove the screws (1) from remote start antenna module (2) and remove from instrument panel assembly.
