Automatic Transmission - 42RLE - Without Variable Line Pressure

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

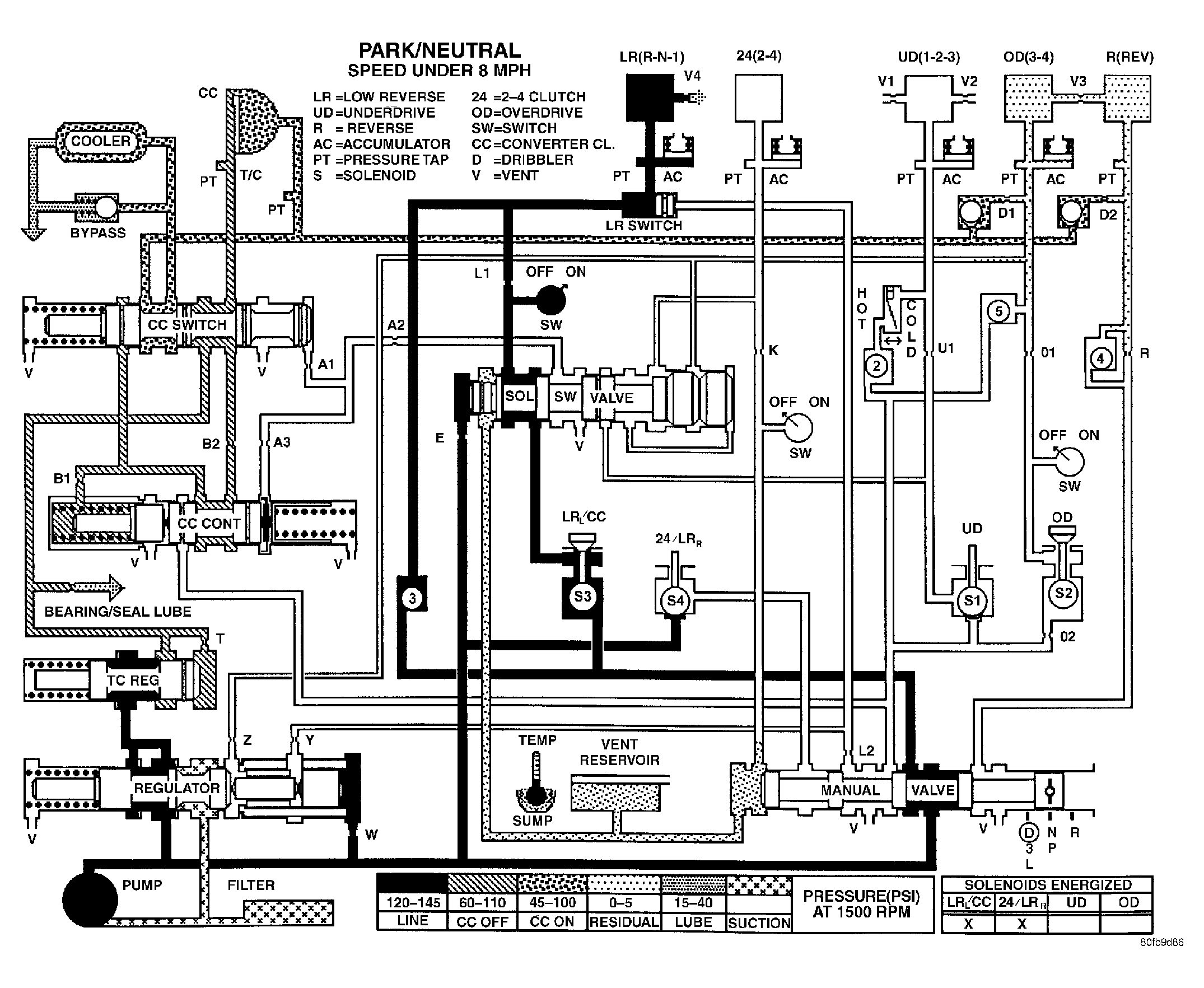

Fig 1: Hydraulic Flow In Park/Neutral (Speed Under 8 MPH)

Courtesy of CHRYSLER LLC

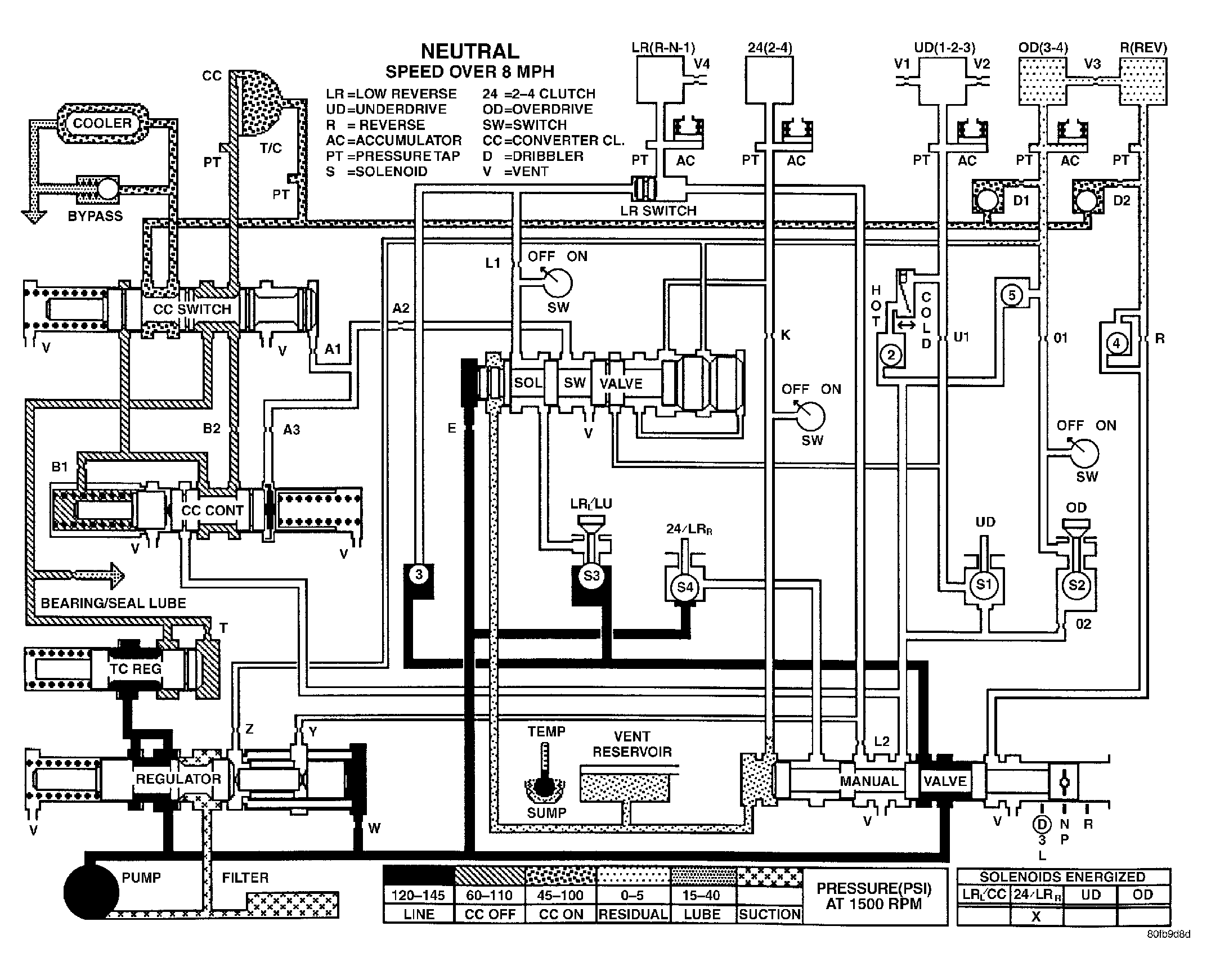

Fig 2: Hydraulic Flow In Neutral (Speed Over 8 MPH)

Courtesy of CHRYSLER LLC

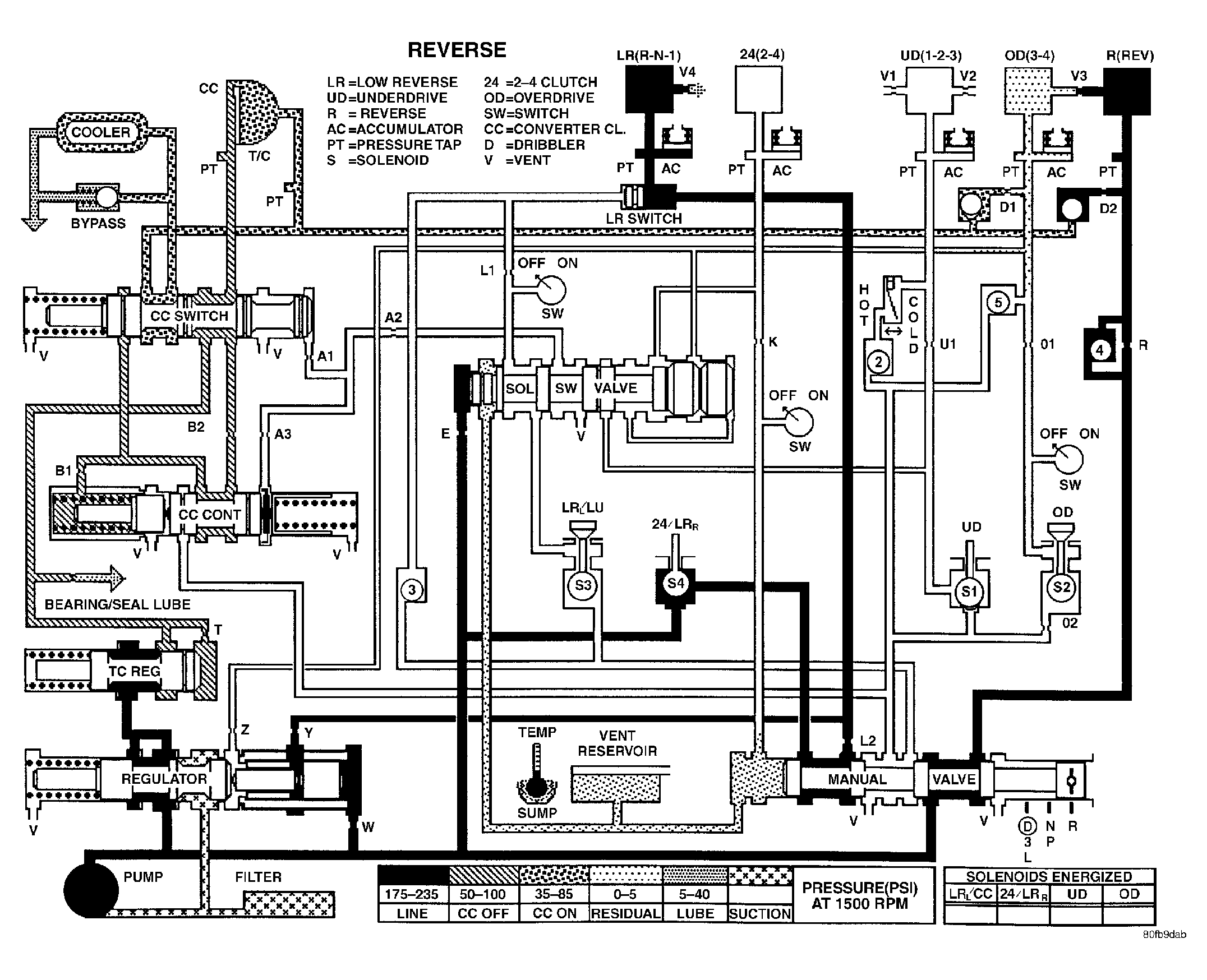

Fig 3: Hydraulic Flow In Reverse

Courtesy of CHRYSLER LLC

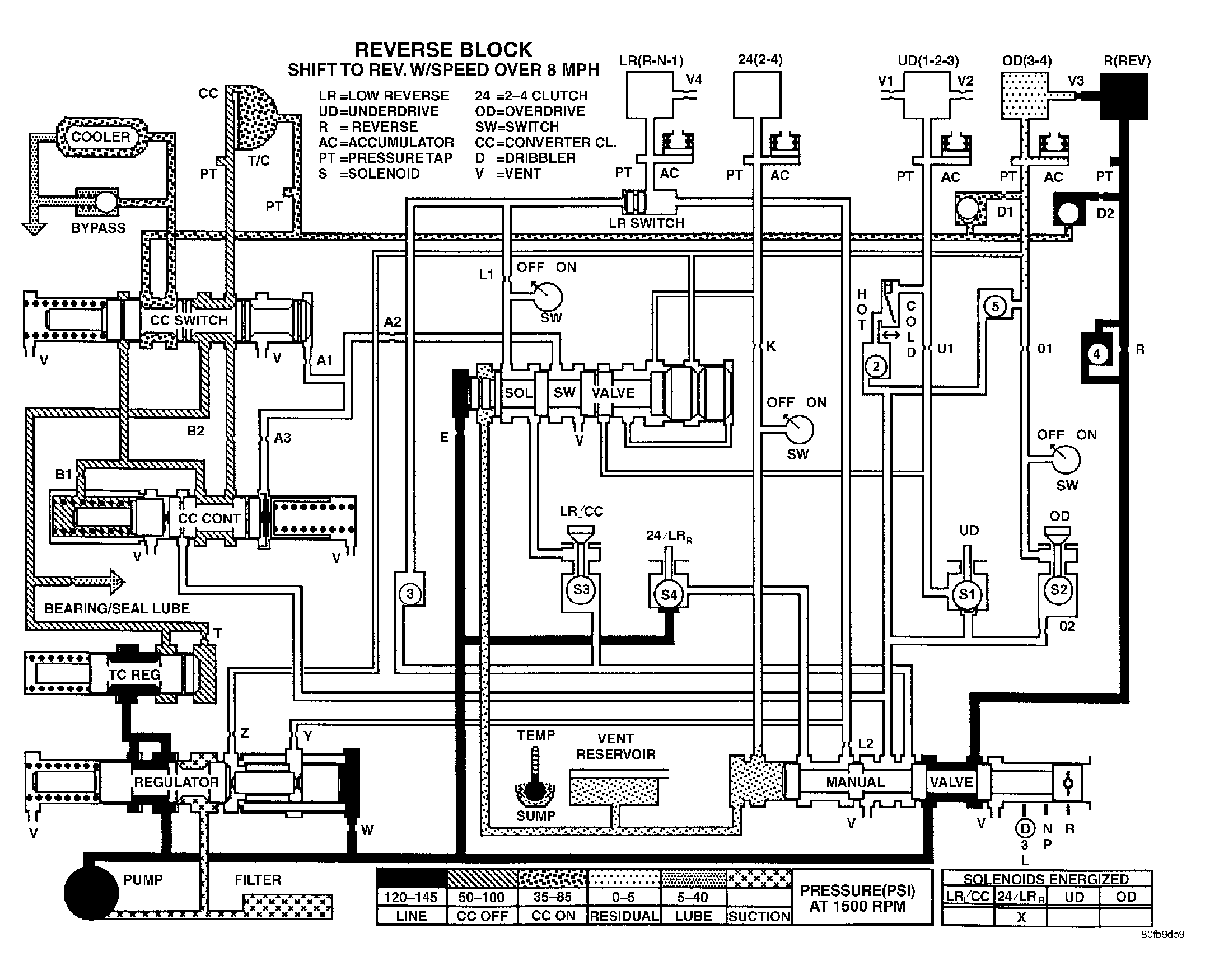

Fig 4: Hydraulic Flow In Reverse Block (Shift To Reverse W/Speed Over 8 MPH)

Courtesy of CHRYSLER LLC

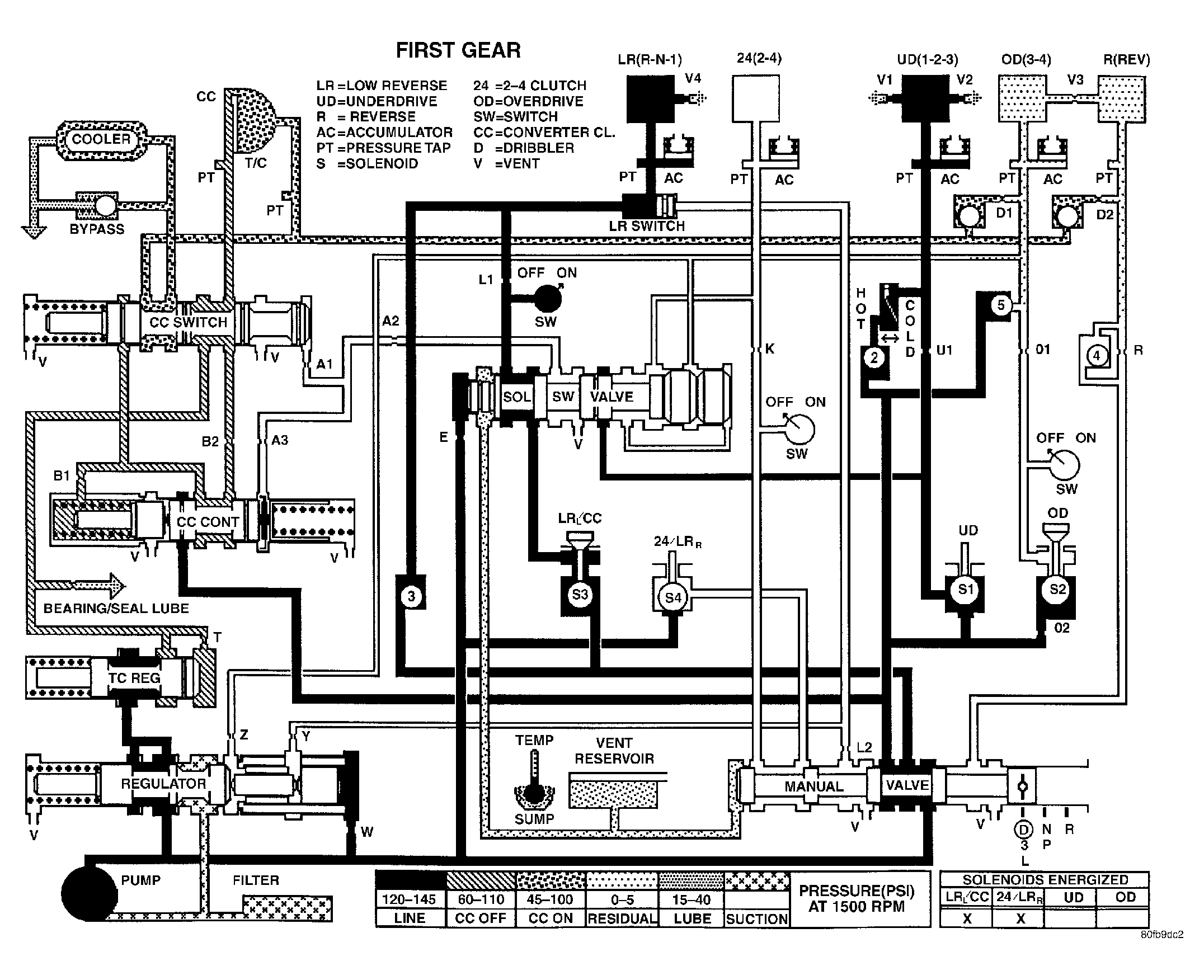

Fig 5: Hydraulic Flow In First Gear

Courtesy of CHRYSLER LLC

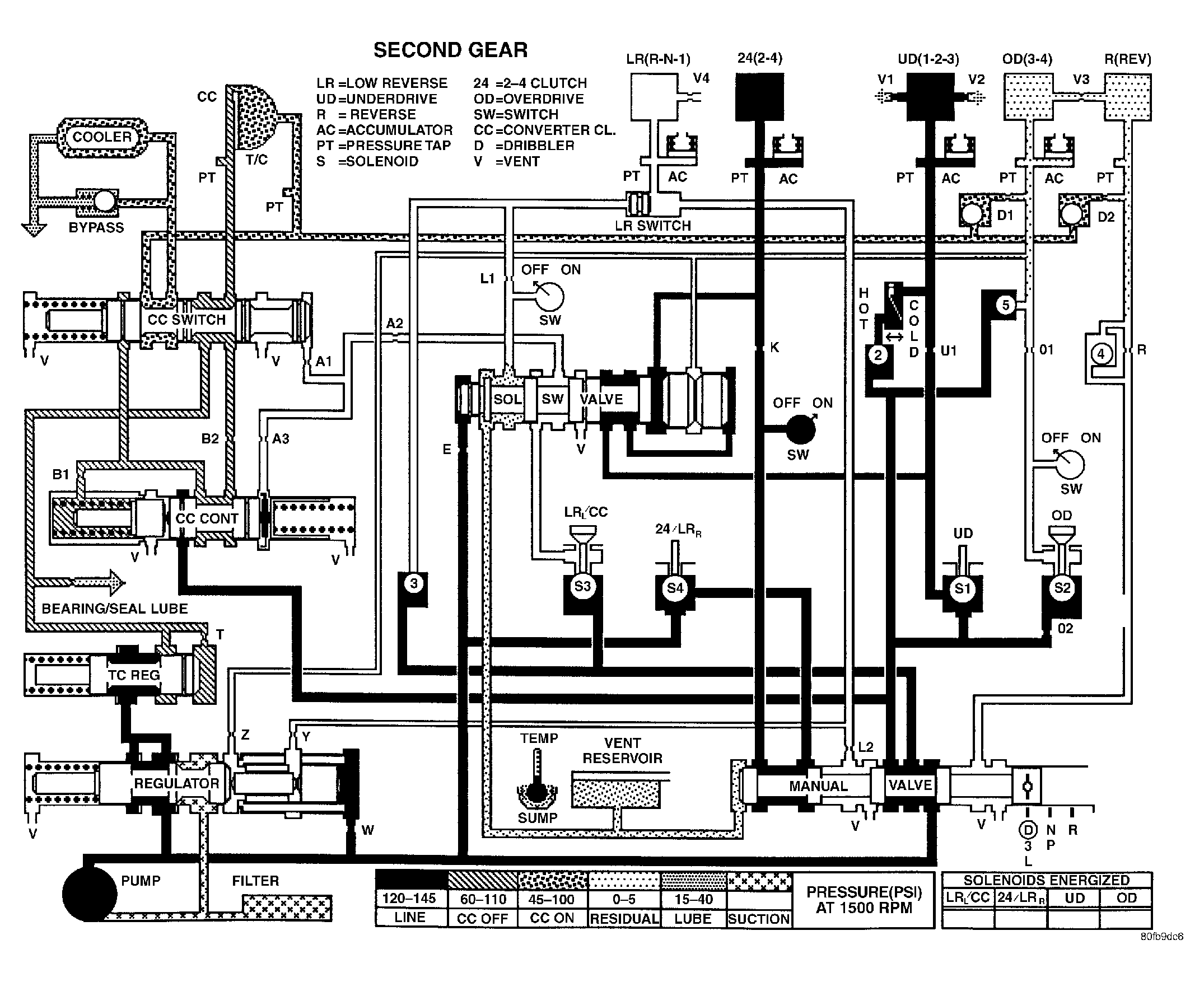

Fig 6: Hydraulic Flow In Second Gear

Courtesy of CHRYSLER LLC

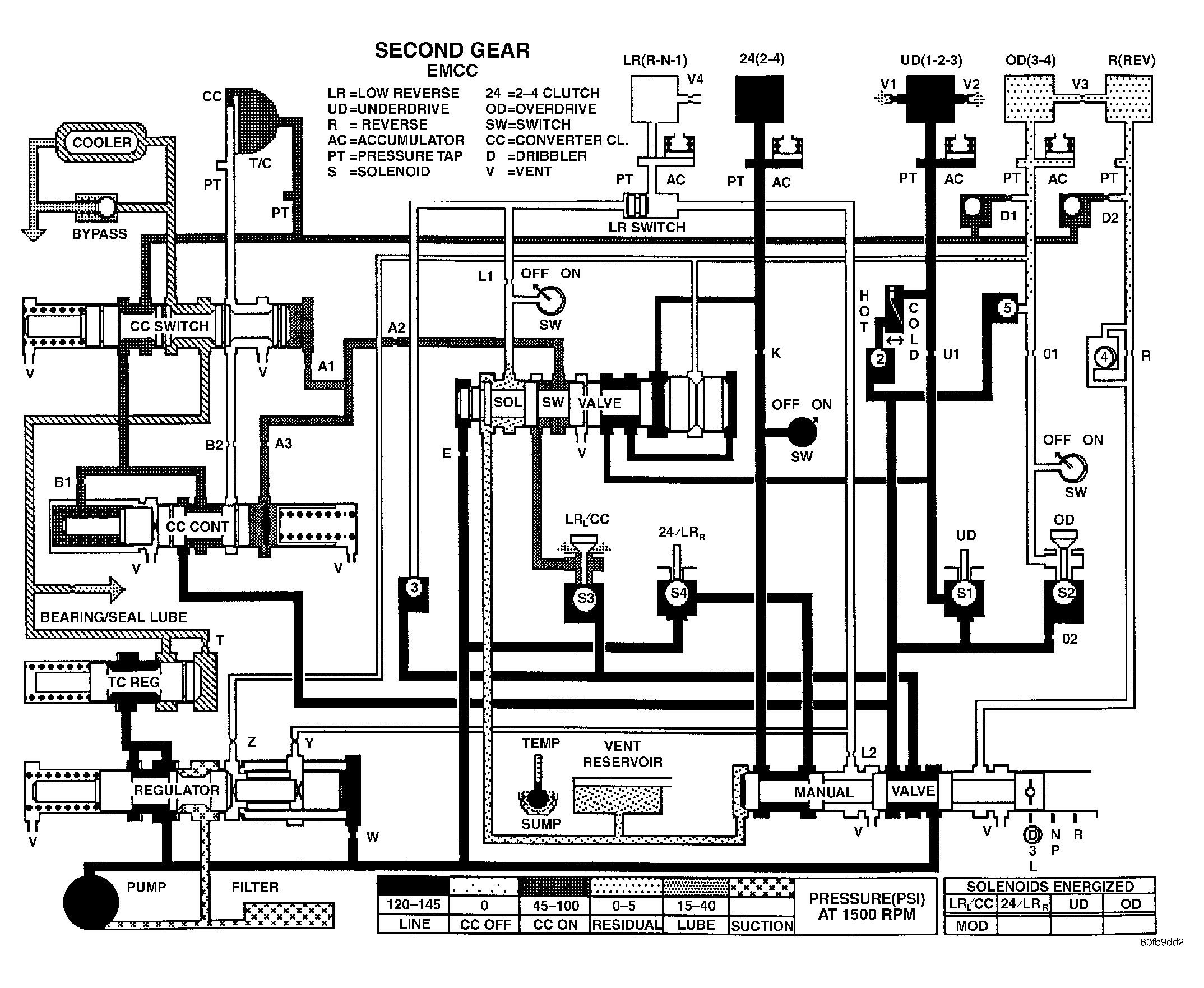

Fig 7: Hydraulic Flow In Second Gear (EMCC)

Courtesy of CHRYSLER LLC

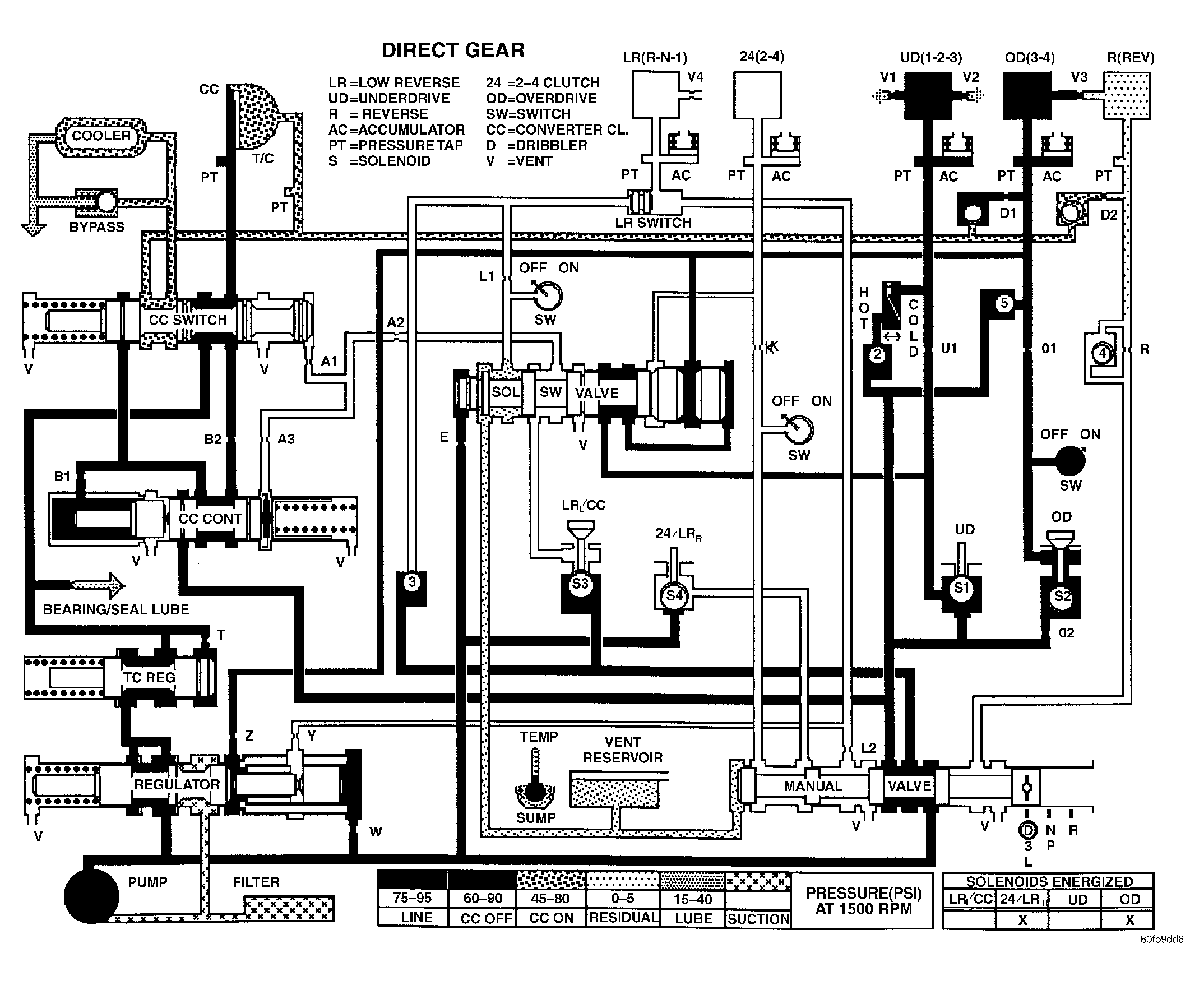

Fig 8: Hydraulic Flow In Direct Gear

Courtesy of CHRYSLER LLC

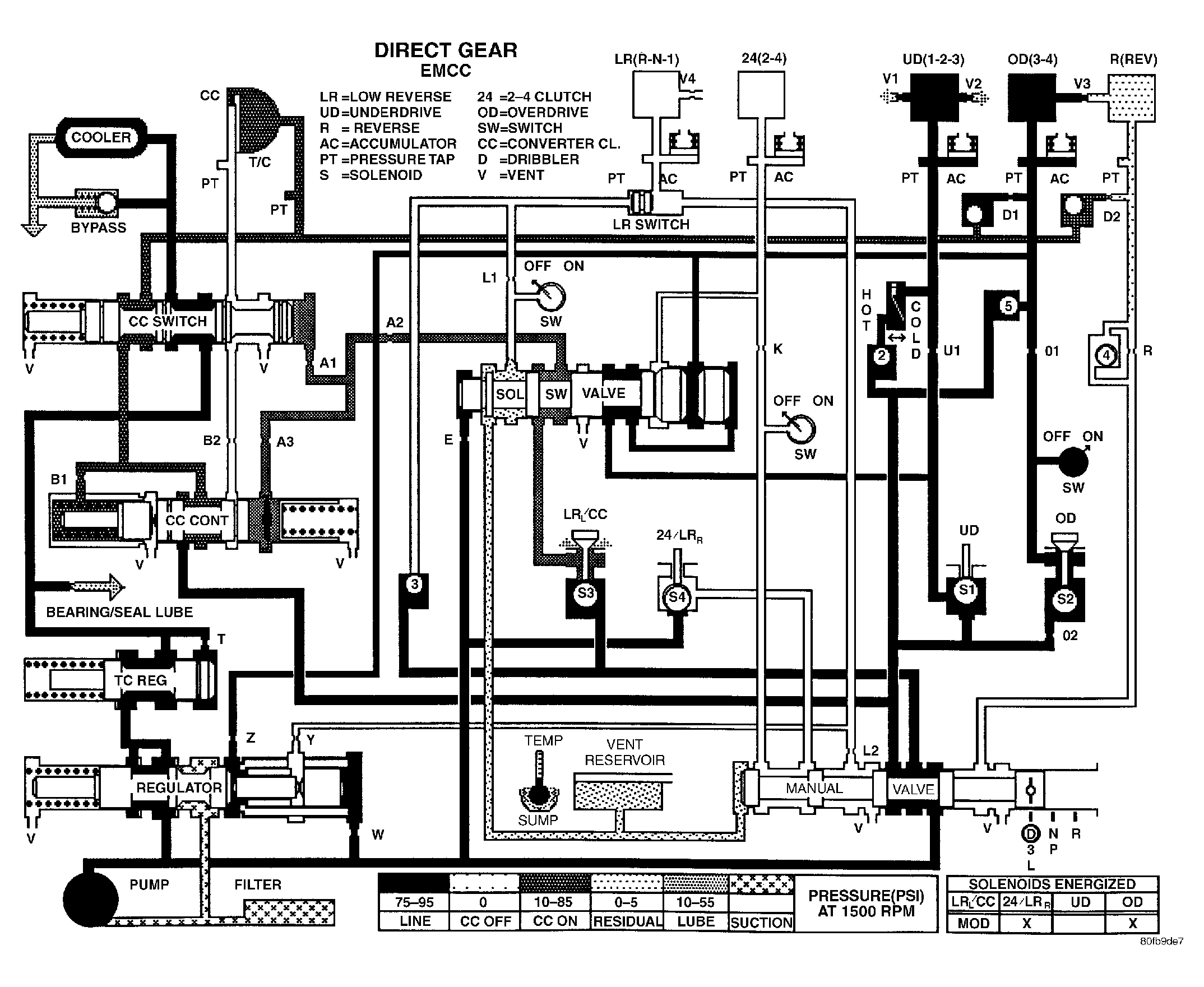

Fig 9: Hydraulic Flow In Direct Gear (EMCC)

Courtesy of CHRYSLER LLC

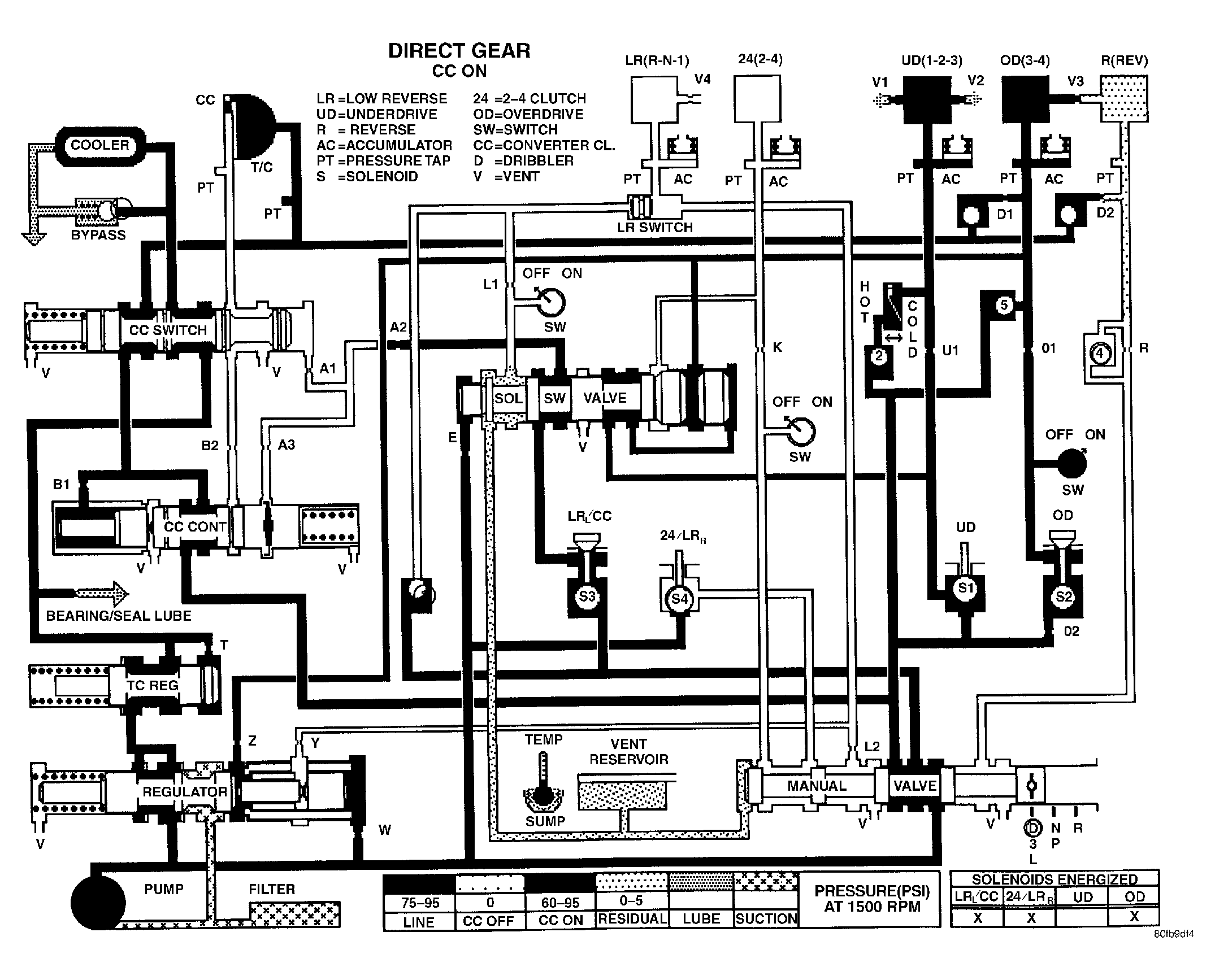

Fig 10: Hydraulic Flow In Direct Gear (CC On)

Courtesy of CHRYSLER LLC

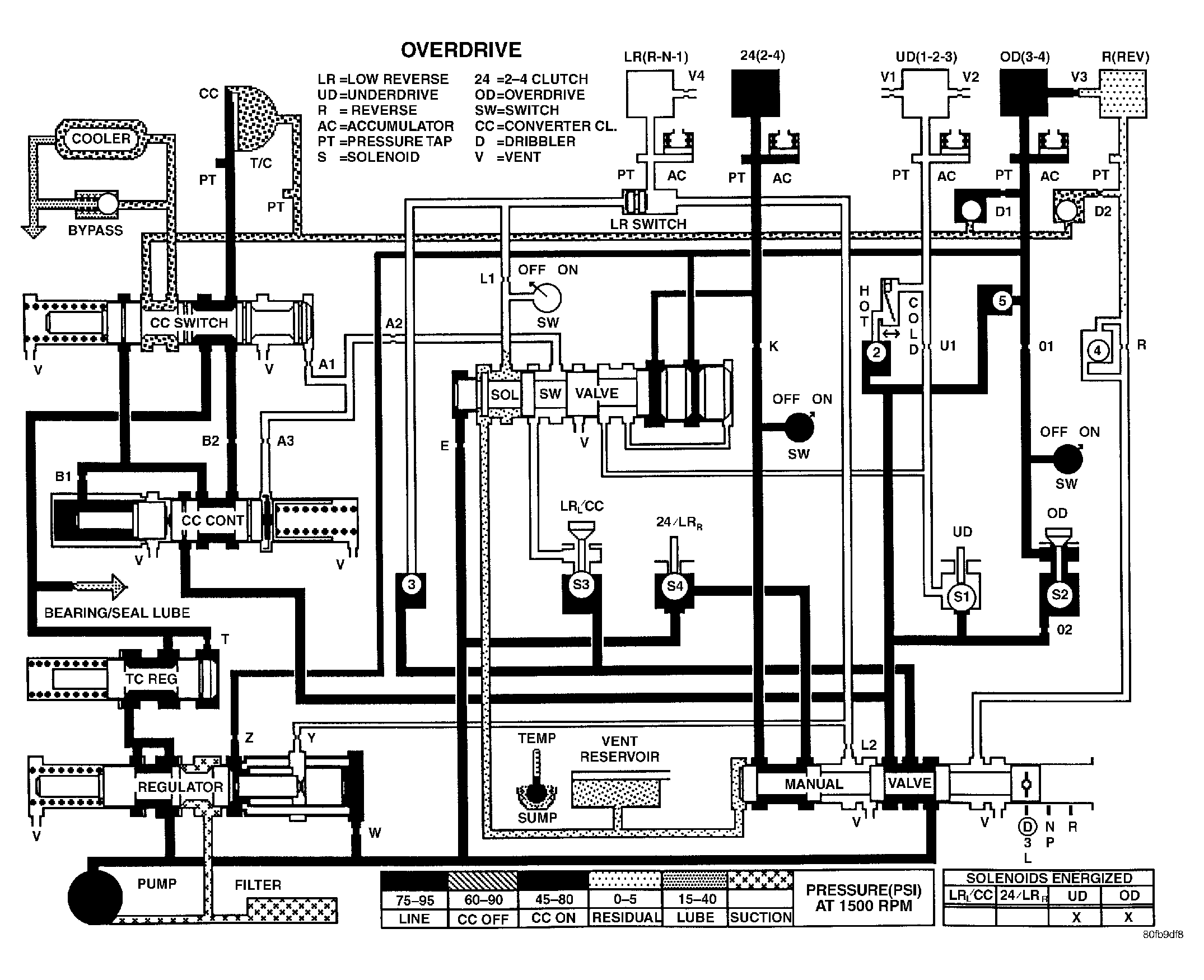

Fig 11: Hydraulic Flow In Overdrive

Courtesy of CHRYSLER LLC

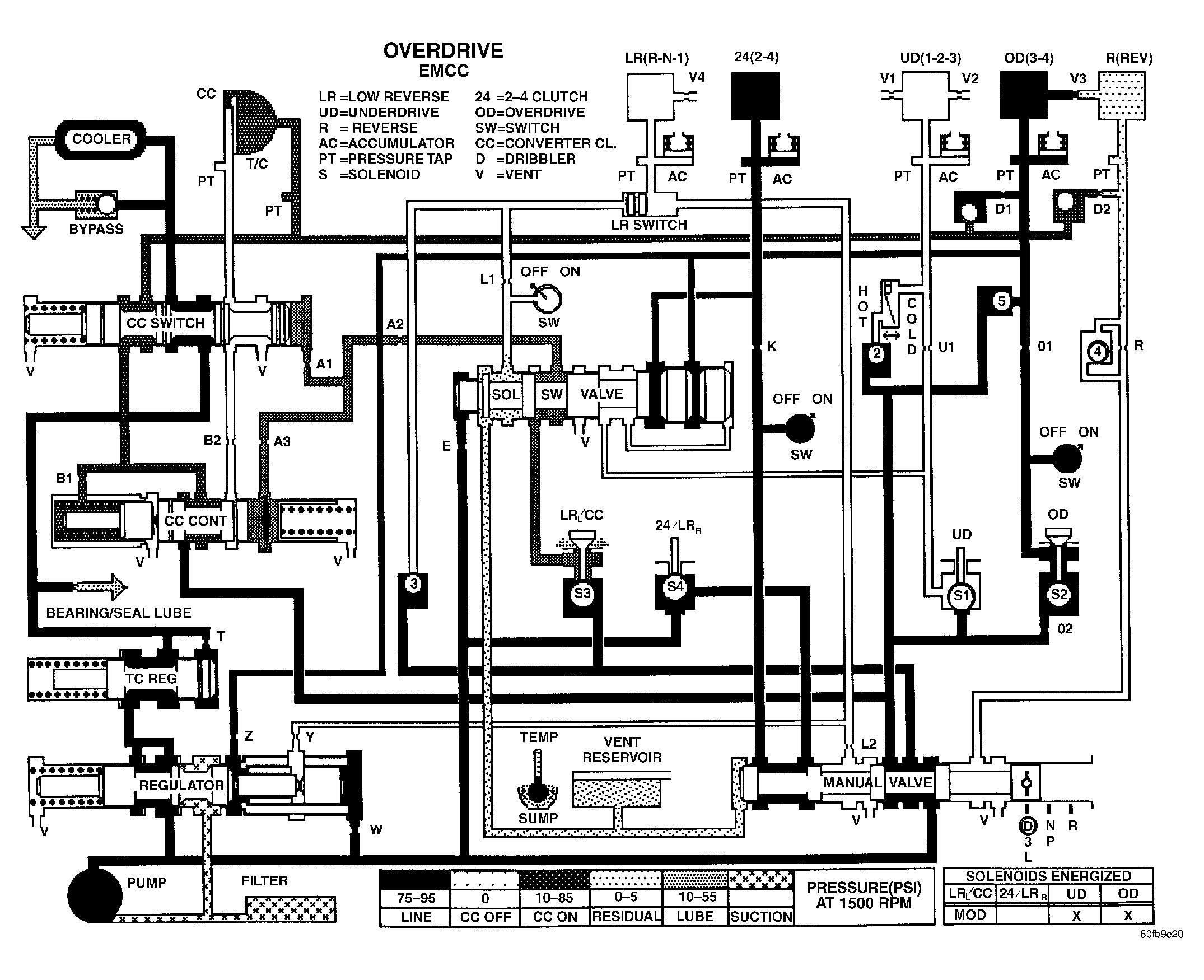

Fig 12: Hydraulic Flow In Overdrive (EMCC)

Courtesy of CHRYSLER LLC

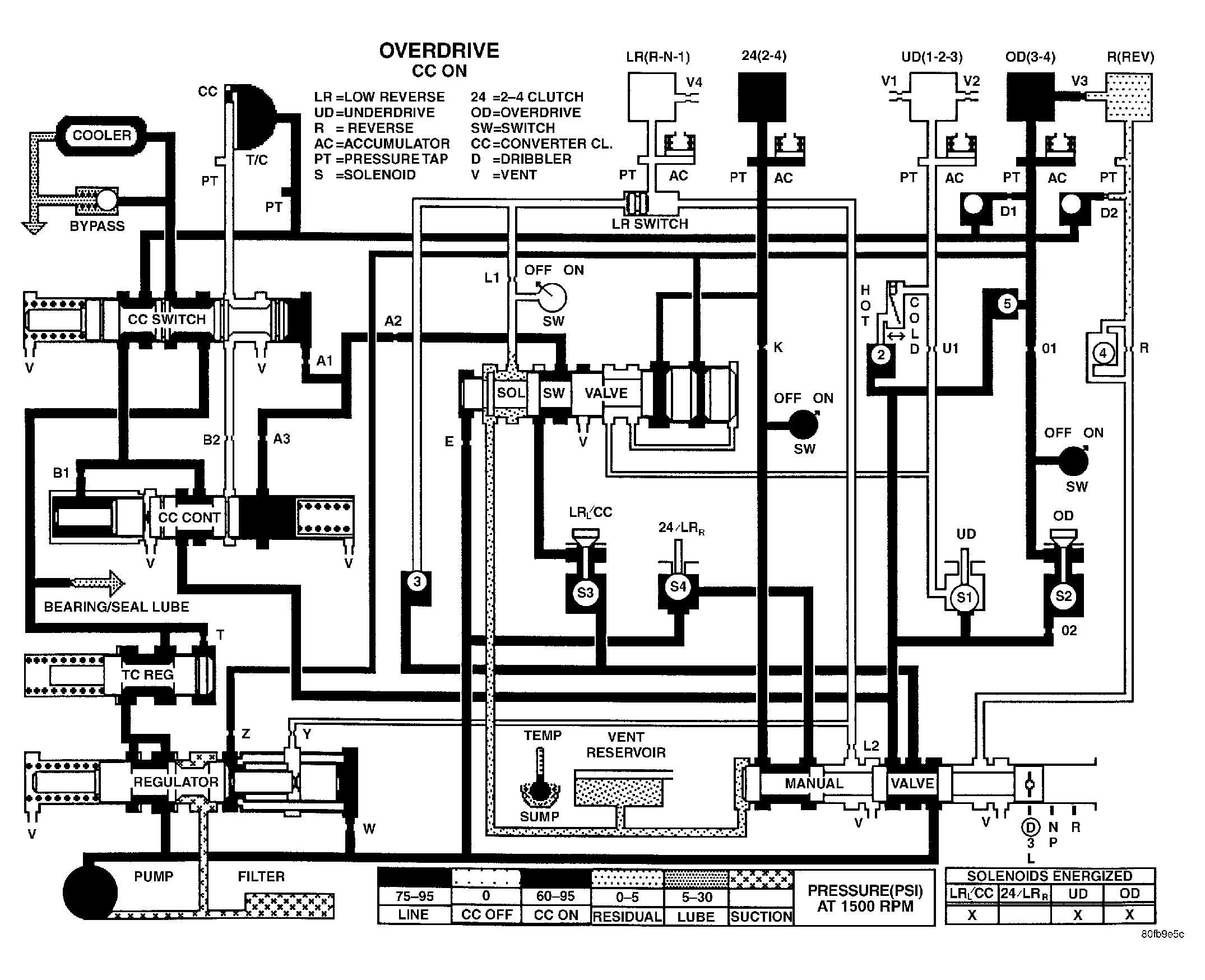

Fig 13: Hydraulic Flow In Overdrive (CC On)

Courtesy of CHRYSLER LLC
