Oil Pump
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

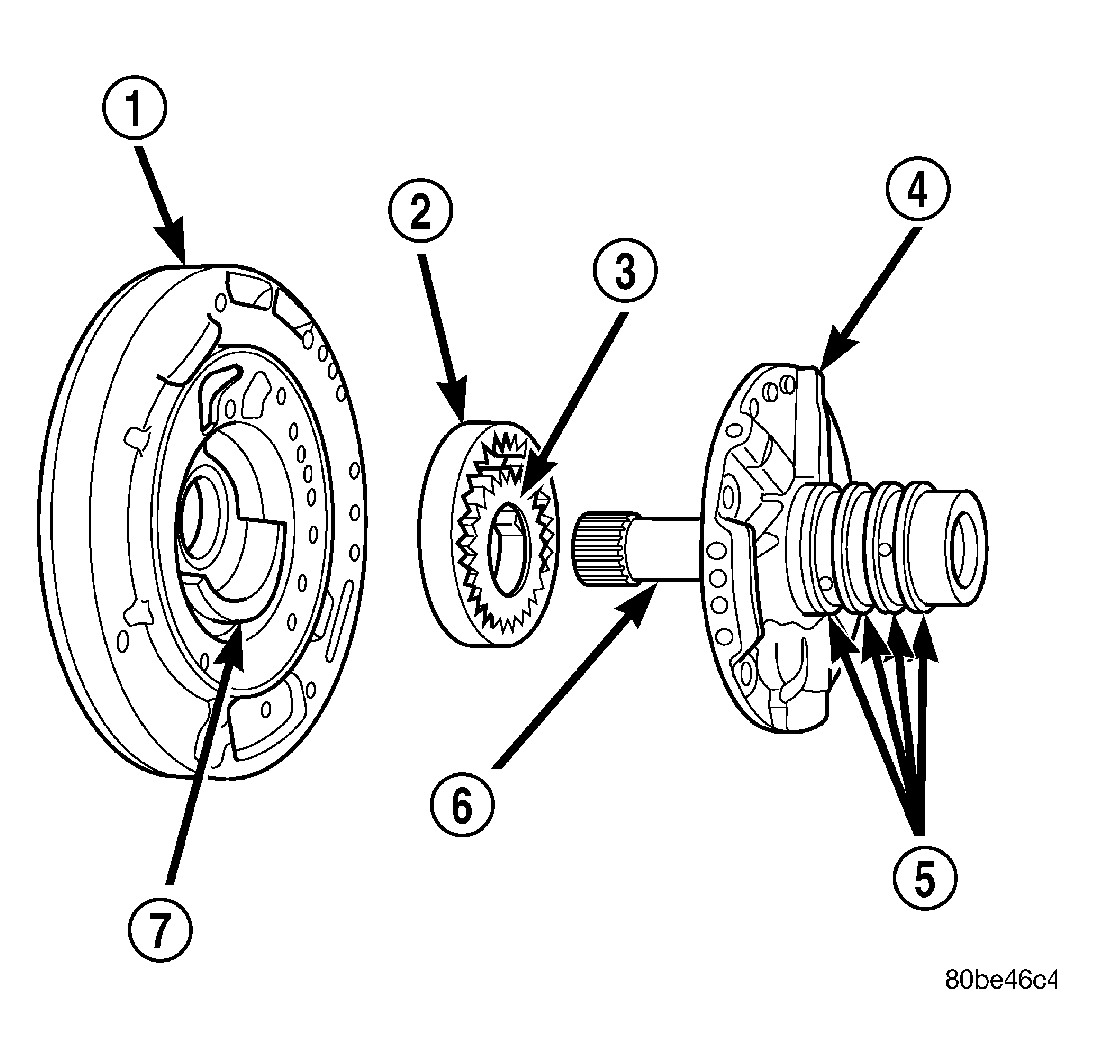

| 1 - PUMP HOUSING |
| 2 - OUTER PUMP GEAR |
| 3 - INNER PUMP GEAR |
| 4 - REACTION SHAFT SUPPORT |
| 5 - SEAL RINGS (4) |
| 6 - REACTION SHAFT |
| 7 - CRESCENT |
- Assemble oil pump as shown in illustration. See Fig 1.
- Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (250 in. lbs.) torque.
