Torque Converter Leakage

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

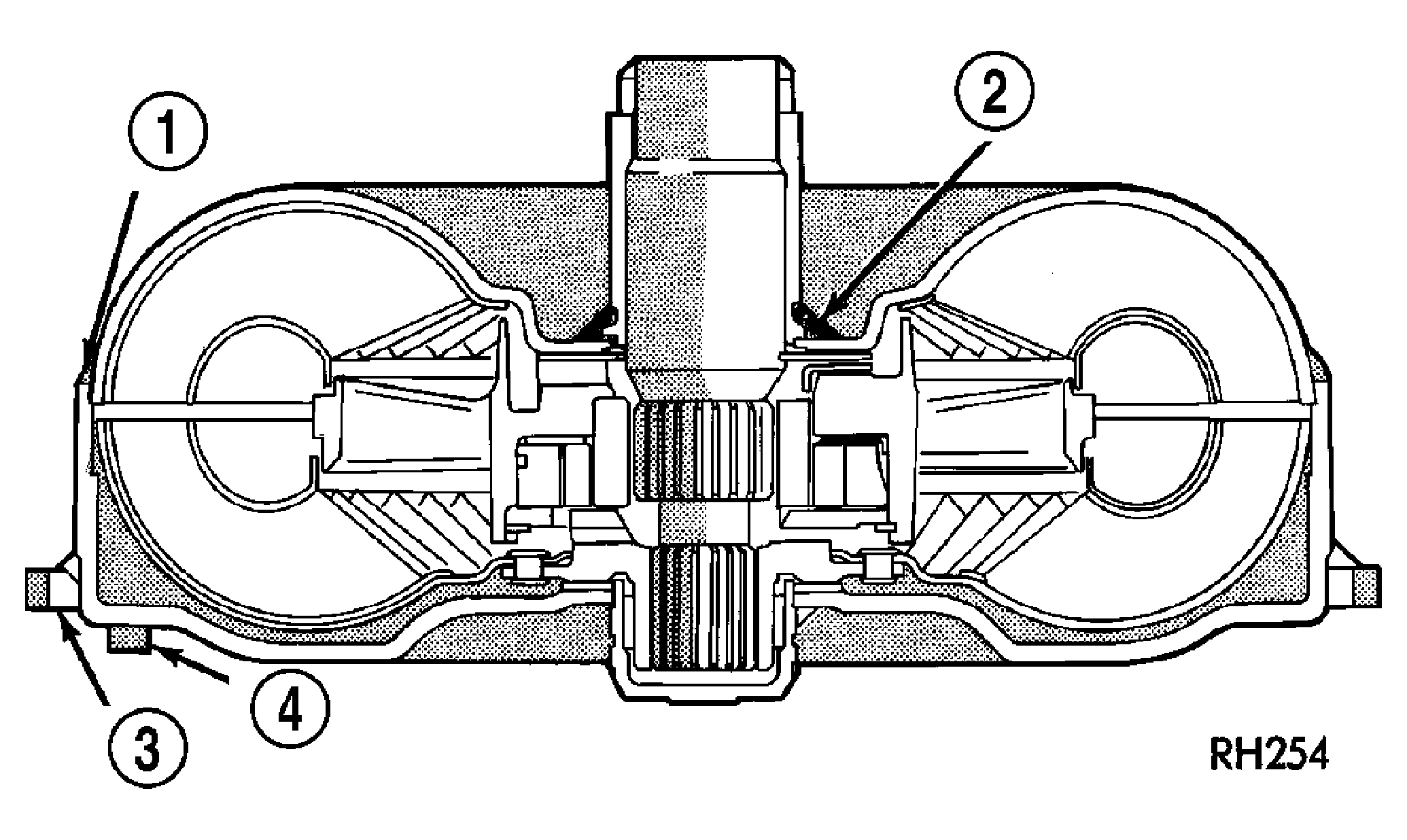

Fig 1: Converter Leak Points - Typical

Courtesy of CHRYSLER LLC

1 - OUTSIDE DIAMETER WELD

2 - TORQUE CONVERTER HUB WELD

3 - STARTER RING GEAR

4 - LUG

Possible sources of torque converter leakage are:

Torque converter weld leaks at the outside diameter weld (1). See Fig 1.
Torque converter hub weld (2).
