Transmission Identification
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

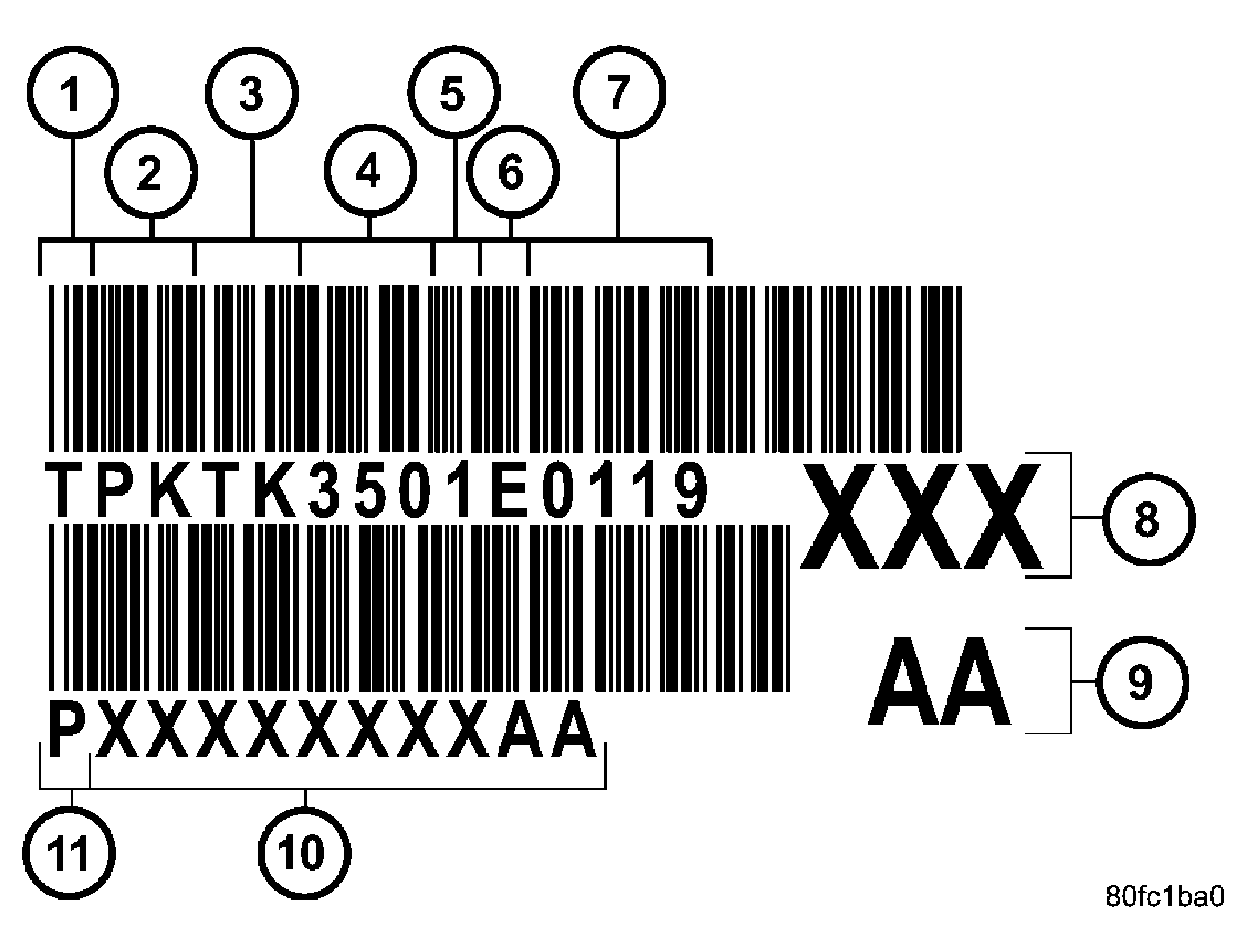

| 1 - T=TRACEABILITY |
| 2 - SUPPLIER CODE (PK=KOKOMO) |
| 3 - COMPONENT CODE (TK=KOKOMO TRANSMISSION) |
| 4 - BUILD DAY (350=DEC. 15) |
| 5 - BUILD YEAR (1=2001) |
| 6 - ASSEMBLY LINE CODE |
| 7 - BUILD SEQUENCE NUMBER |
| 8 - LAST THREE OF P/N |
| 9 - CHANGE LEVEL |
| 10 - TRANSMISSION PART NUMBER |
| 11 - P=PART NUMBER |
The 42RLE transmission can be identified by a barcode label that is affixed to the upper left area of the bellhousing.
The label contains a series of digits that can be translated into useful information such as transmission part number (10), date of manufacture (4, 5), manufacturing origin (2), assembly line identifier (6), build sequence number (7), etc. See Fig 1.
If the tag is not legible or is missing, the "PK" number, which is stamped into the left rear flange of the transmission case, can be referred to for identification. The entire part number, build code, and sequence number are stamped into the flange.
