Manual Valve
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - UD CLUTCH |
| 2 - LR/CC CLUTCH |
| 3 - REVERSE CLUTCH |
| 4 - MANUAL VALVE |
| 5 - REGULATOR VALVE |
| 6 - REGULATOR VALVE |
| 7 - CONVERTER CLUTCH CONTROL VALVE |
| 8 - 2/4 CLUTCH |
| 9 - 2/4 - L/R SOLENOID |
| 10 - L/R CLUTCH |

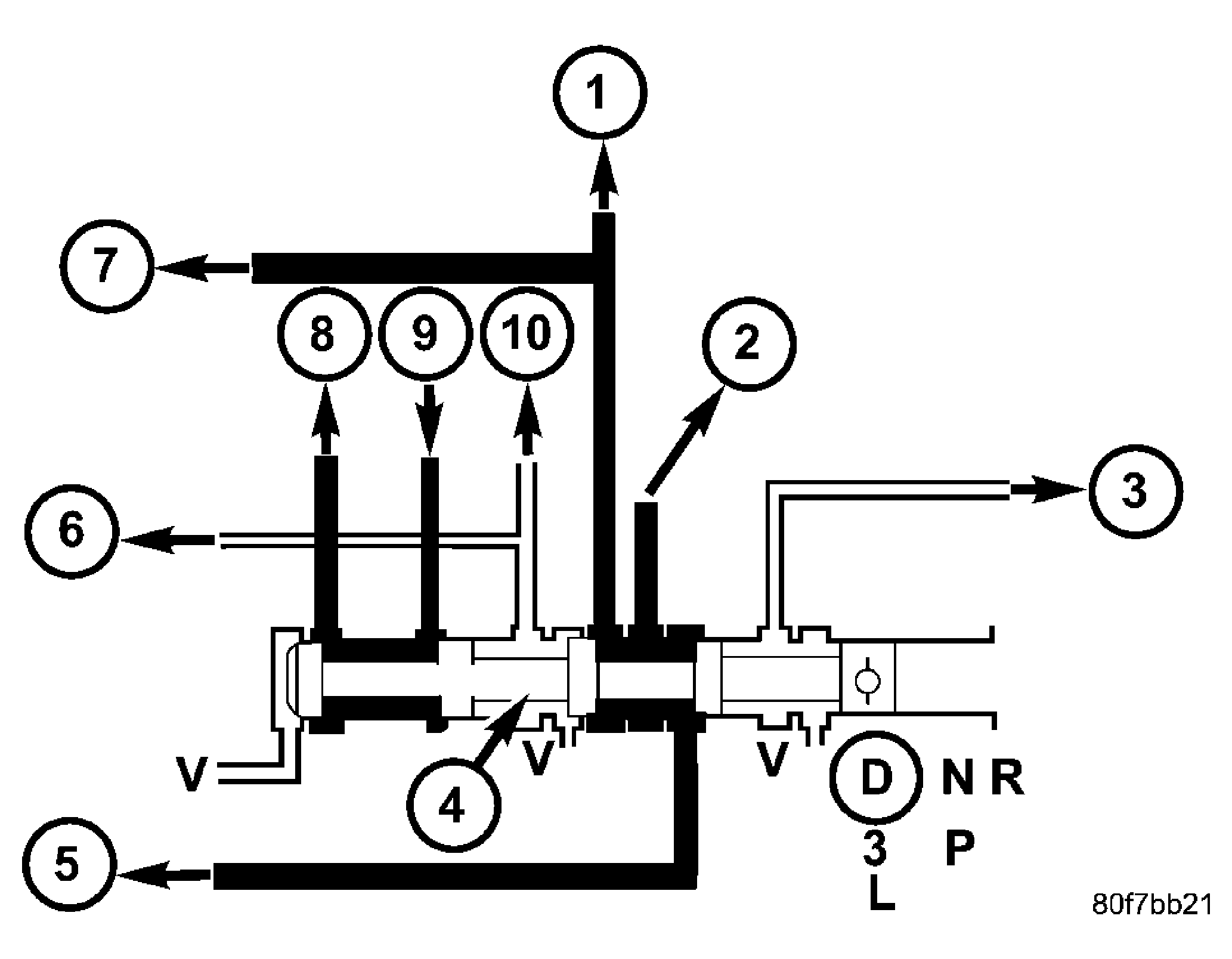

The manual valve (4) is operated by the mechanical shift linkage. Its primary responsibility is to send line pressure to the appropriate hydraulic circuits and solenoids. The valve has three operating ranges or positions. See Fig 1.
