Converter Clutch Control Valve
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - CONVERTER CLUTCH |
| 2 - TORQUE CONVERTER |
| 3 - LR/CC SOLENOID |
| 4 - FROM MANUAL VALVE |
| 5 - CONVERTER CLUTCH CONTROL VALVE |
| 6 - TORQUE CONVERTER REGULATOR VALVE |
| 7 - CONVERTER CLUTCH SWITCH VALVE |
| 8 - BYPASS VALVE |
| 9 - COOLER |

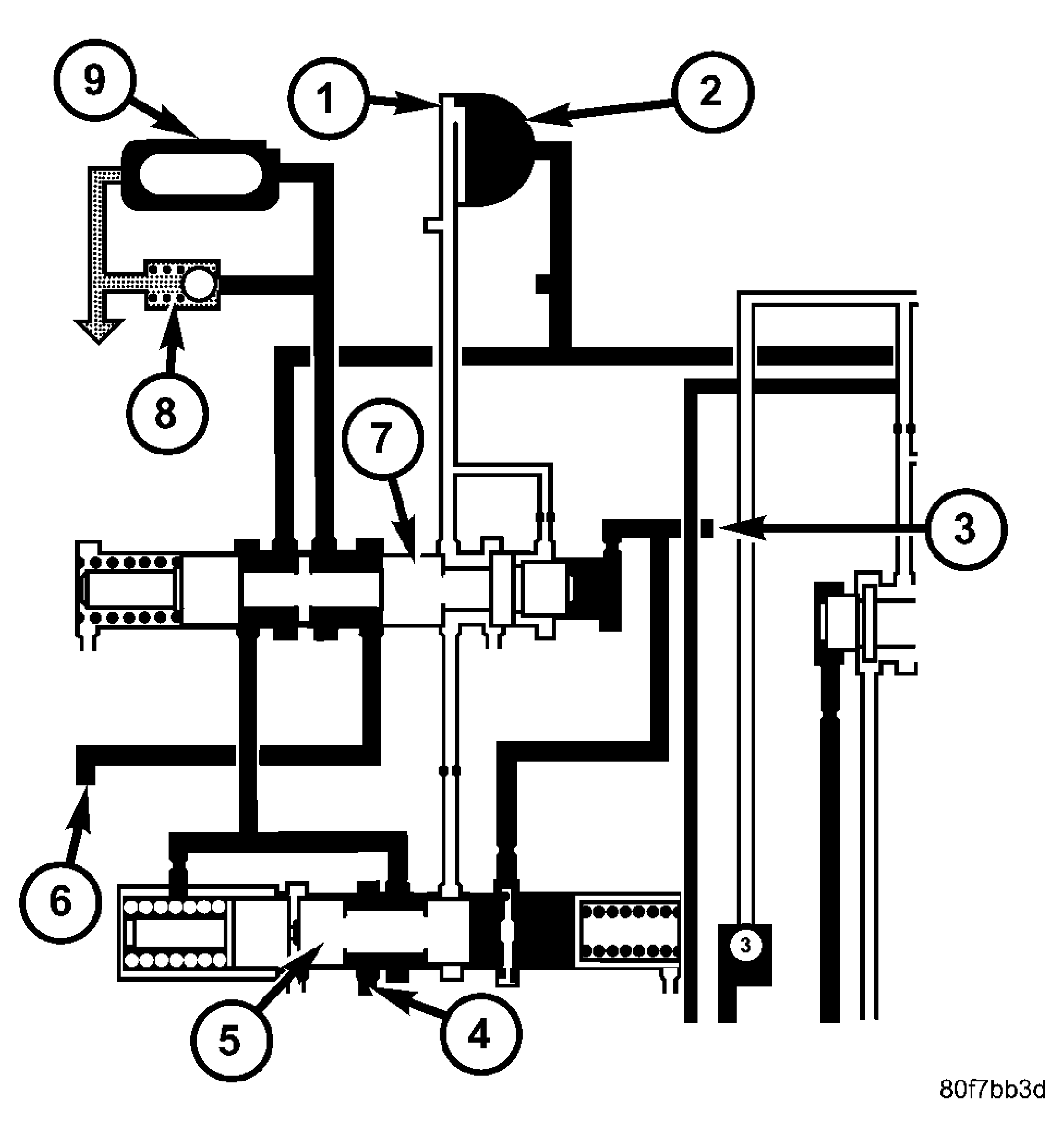

The converter clutch control valve (5) controls the back (on) side of the torque converter clutch (1). When the controller energizes or modulates the LR/CC solenoid to apply the converter clutch piston, both the converter clutch control valve (5) and the converter control valve move, allowing pressure to be applied to the back side of the clutch. See Fig 1.
