Solenoid/Pressure Switch Assembly

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the Solenoid/Pressure Switch Assembly is being replaced, the Quick Learn Procedure must be performed. Refer to STANDARD PROCEDURE .

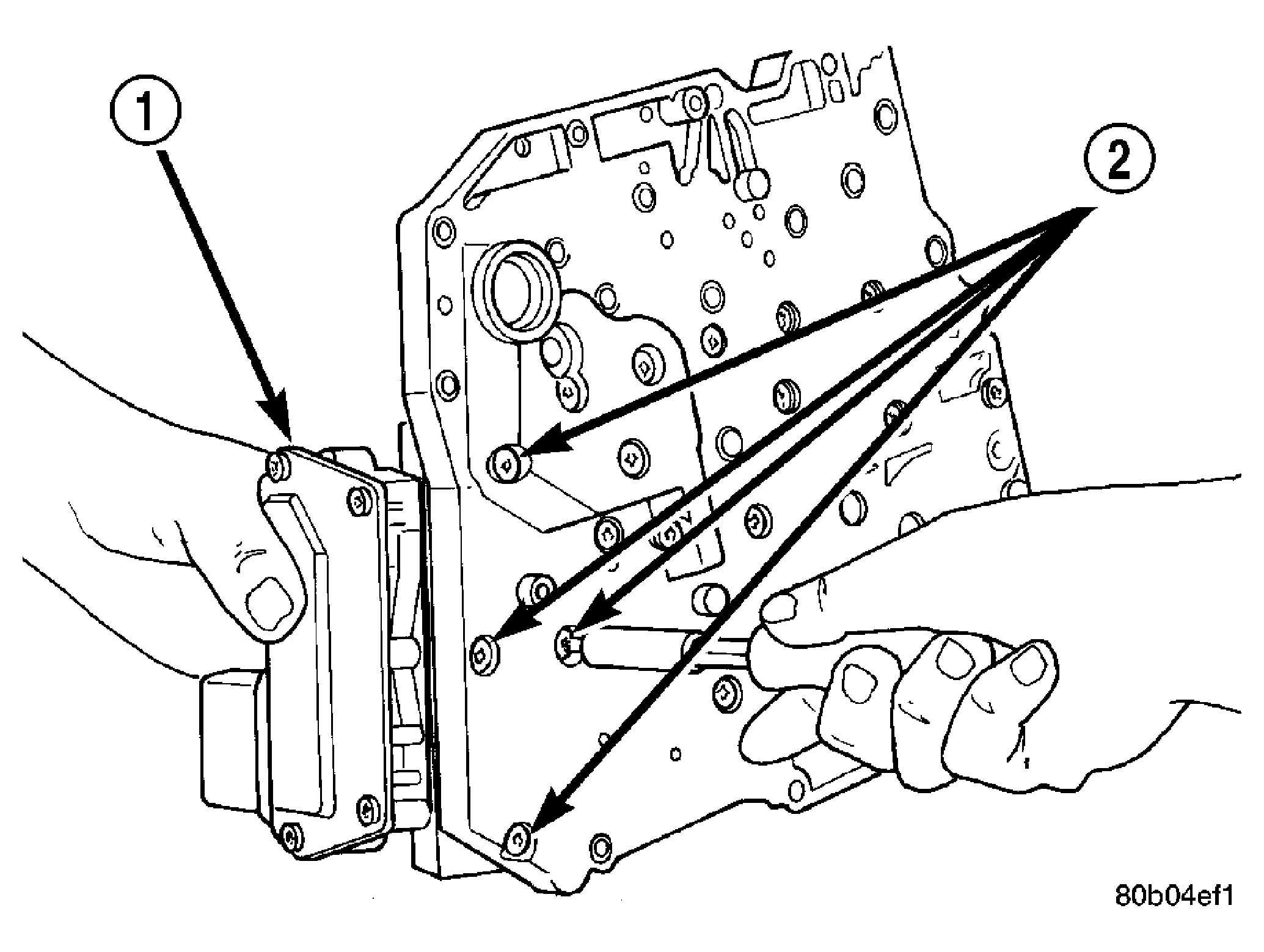

Fig 1: Solenoid Retaining Screws

Courtesy of CHRYSLER LLC

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - RETAINING SCREWS

Raise vehicle on hoist.
Remove valve body assembly from transmission. See REMOVAL .

Remove Solenoid/Pressure Switch Assembly retaining screws (2) from solenoid. See Fig 1.

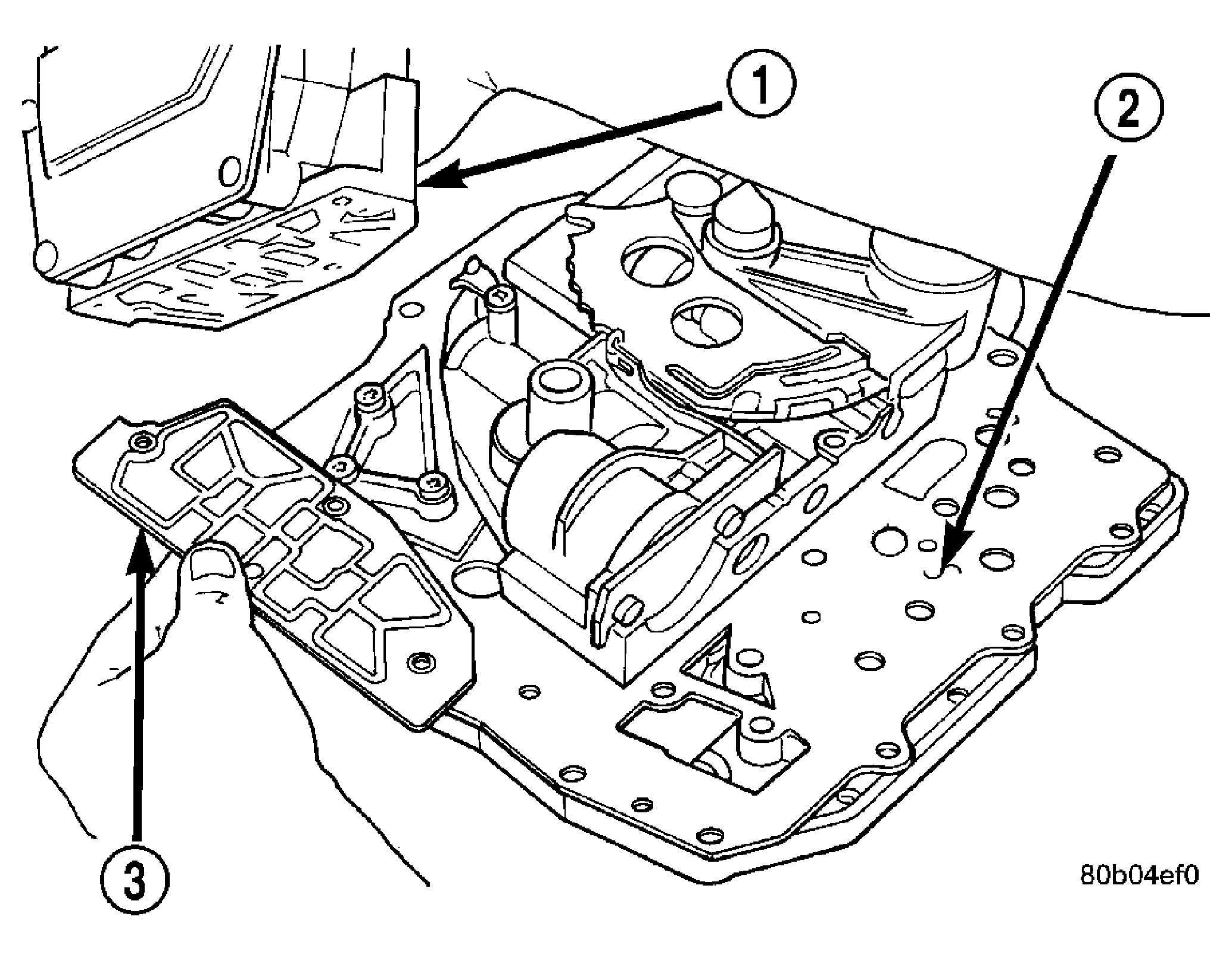

Fig 2: Solenoid/Pressure Switch Assembly and Screen

Courtesy of CHRYSLER LLC

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - VALVE BODY

3 - SCREEN

Remove Solenoid/Pressure Switch Assembly (1) and screen from valve body (2). See Fig 2.
