Diagnostic Test

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR AN ACTIVE DTC

    Turn the ignition on.

    With the scan tool, record and erase DTCs.

    Activate the Panel Dimmer Switch.

    Wait 30 seconds.

    With the scan tool, read DTCs.

    Is the DTC active?

    Yes

    1. Go To  2.

    No

    1. The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  2. CHECK THE (E2) PANEL LAMPS DIMMER SIGNAL CIRCUIT, AND THE (L900) HEADLAMP SWITCH MUX RETURN CIRCUIT FOR A SHORT TO VOLTAGE
    Fig 1: Checking Panel Lamps Dimmer Signal Circuit & Headlamp Switch MUX Return Circuit
    GC0016009Courtesy of CHRYSLER LLC

    Disconnect the Headlamp Switch harness connector.

    Turn the ignition on.

    Using a test light, measure for voltage on the (E2) Panel Lamps Dimmer Signal circuit.

    Using a test light, measure for voltage on the (L900) Headlamp Switch MUX Return circuit.

    Is the voltage greater than 5 volts on the E2 or L900 circuit?

    Yes

    1. Repair the E2 or the L900 for a short to voltage.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go To  3.
  3. CHECK THE OPERATION OF THE PANEL LAMPS DIMMER SWITCH
    Fig 2: Checking Operation Of Panel Lamps Dimmer Switch
    GC0016010Courtesy of CHRYSLER LLC

    Connect a jumper wire at the Headlamp Switch harness connector between the (E2) Panel Lamps Dimmer Signal circuit and the (L900) Headlamp Switch MUX Return circuit.

    With the scan tool, read DTCs.

    Does the Scan tool display-B160A-PANEL DIMMER INPUT CIRCUIT LOW?

    Yes

    1. Replace the Headlamp Switch in accordance with the service information.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go To  4.
  4. CHECK THE (L900) HEADLAMP SWITCH MUX RETURN CIRCUIT FOR AN OPEN

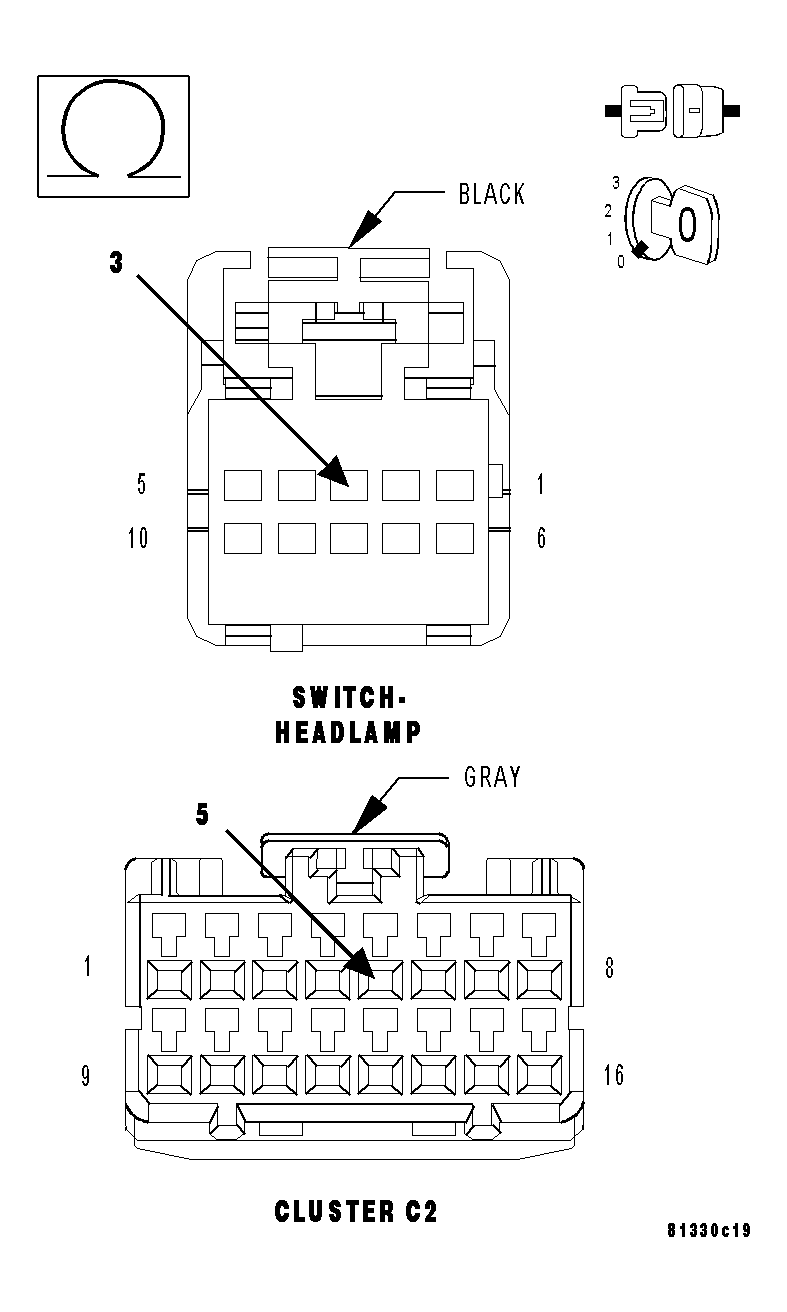

    Fig 3: Checking Headlamp Switch MUX Return Circuit
    GC0016011Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Instrument Cluster C2 harness connector.

    Measure the resistance of the (L900) Headlamp Switch MUX Return circuit between the Instrument Cluster C2 harness connector and the Headlamp Switch harness connector.

    Is the resistance above 5.0 ohms?

    Yes

    1. Repair the (L900) Headlamp Switch MUX Return circuit for an open.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go To  5.
  5. CHECK THE (E2) PANEL LAMPS DIMMER SIGNAL CIRCUIT FOR AN OPEN
    Fig 4: Checking Panel Lamps Dimmer Signal Circuit
    GC0016012Courtesy of CHRYSLER LLC

    Disconnect the Instrument Cluster C1 harness connector.

    Measure the resistance of the (E2) Panel Lamps Dimmer Signal circuit between the Instrument Cluster C1 harness connector and the Headlamp Switch harness connector.

    Is the resistance above 5.0 ohms?

    Yes

    1. Repair the (E2) Panel Lamps Dimmer Signal circuit for an open.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace the Instrument Cluster in accordance with the service information.
    2. Perform BODY VERIFICATION TEST - VER 1 .
