Section 247 (Instrument Cluster - Electrical Diagnostics)
>>
Instrument Cluster - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1226-Rear Wiper Indicator Control Circuit High
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

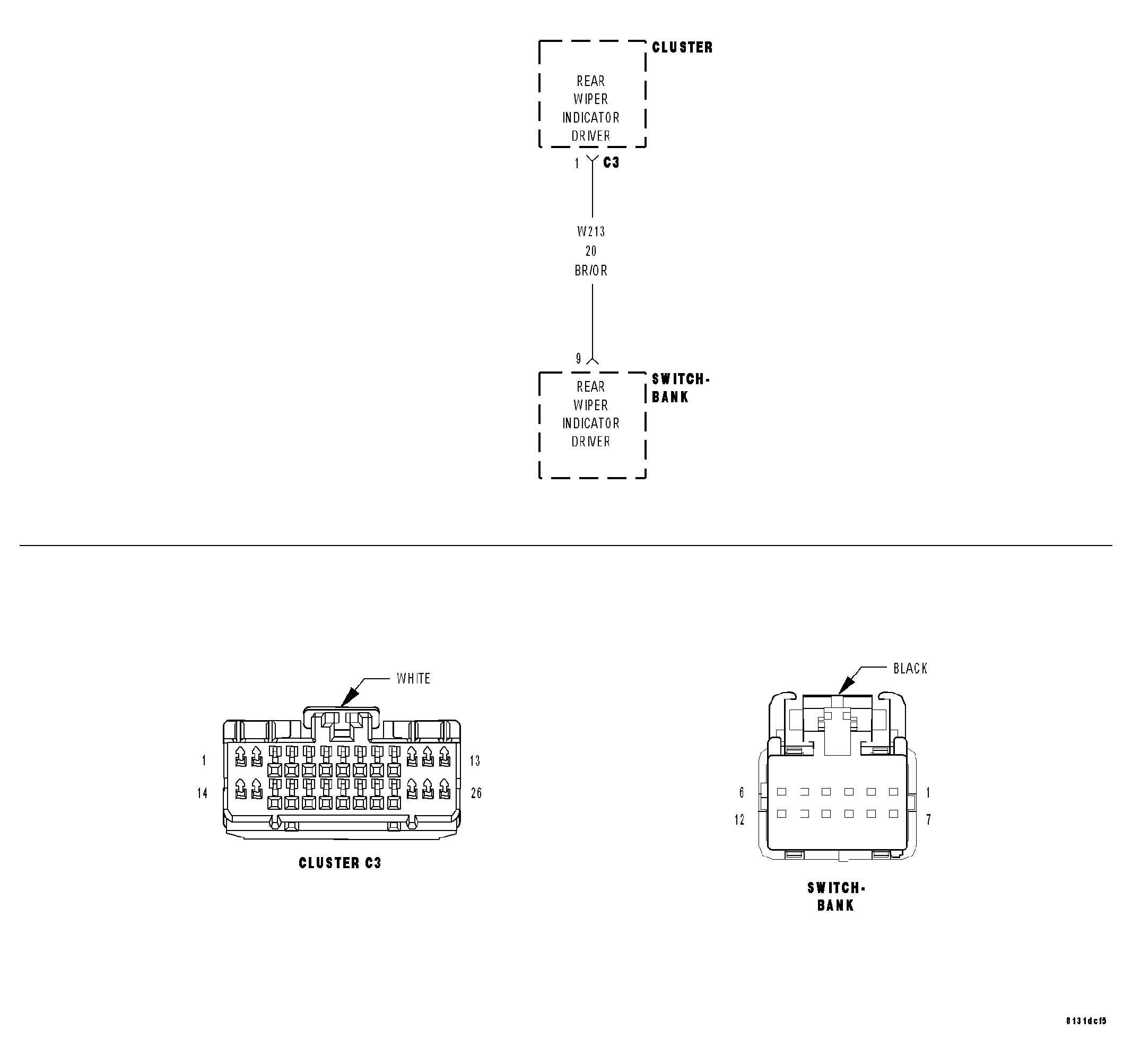

Fig 1: Rear Wiper Indicator Control Circuit Schematic
Courtesy of CHRYSLER LLC
