Timing Chain

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Cover Slide Bushings

Courtesy of CHRYSLER LLC

Disconnect battery negative cable.
Drain cooling system.

Remove Timing Chain Cover (1). See REMOVAL .

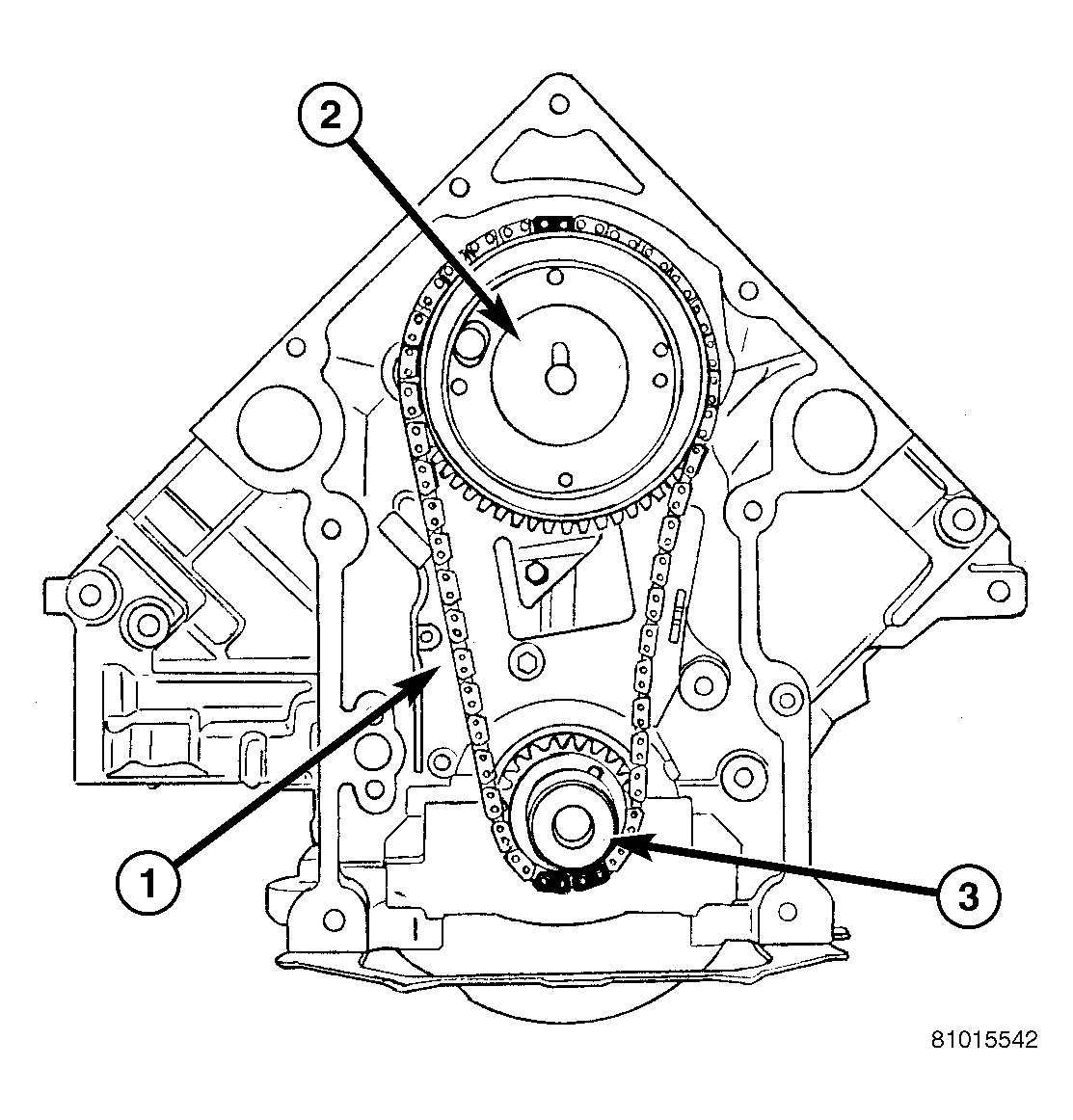

Fig 2: Timing Mark Alignment

Courtesy of CHRYSLER LLC

1 - Chain Tensioner

2 - Camshaft Sprocket

3 - Crankshaft Sprocket

Re-install the vibration damper bolt finger tight. Using a suitable socket and breaker bar, rotate the crankshaft to align timing chain sprockets and keyways as shown in illustration.
CAUTION: The camshaft pin and the slot in the cam sprocket must be clocked at 12:00 (2). The crankshaft keyway must be clocked at 2:00 (3). The crankshaft sprocket must be installed so that the dots and or paint marking is at 6:00.

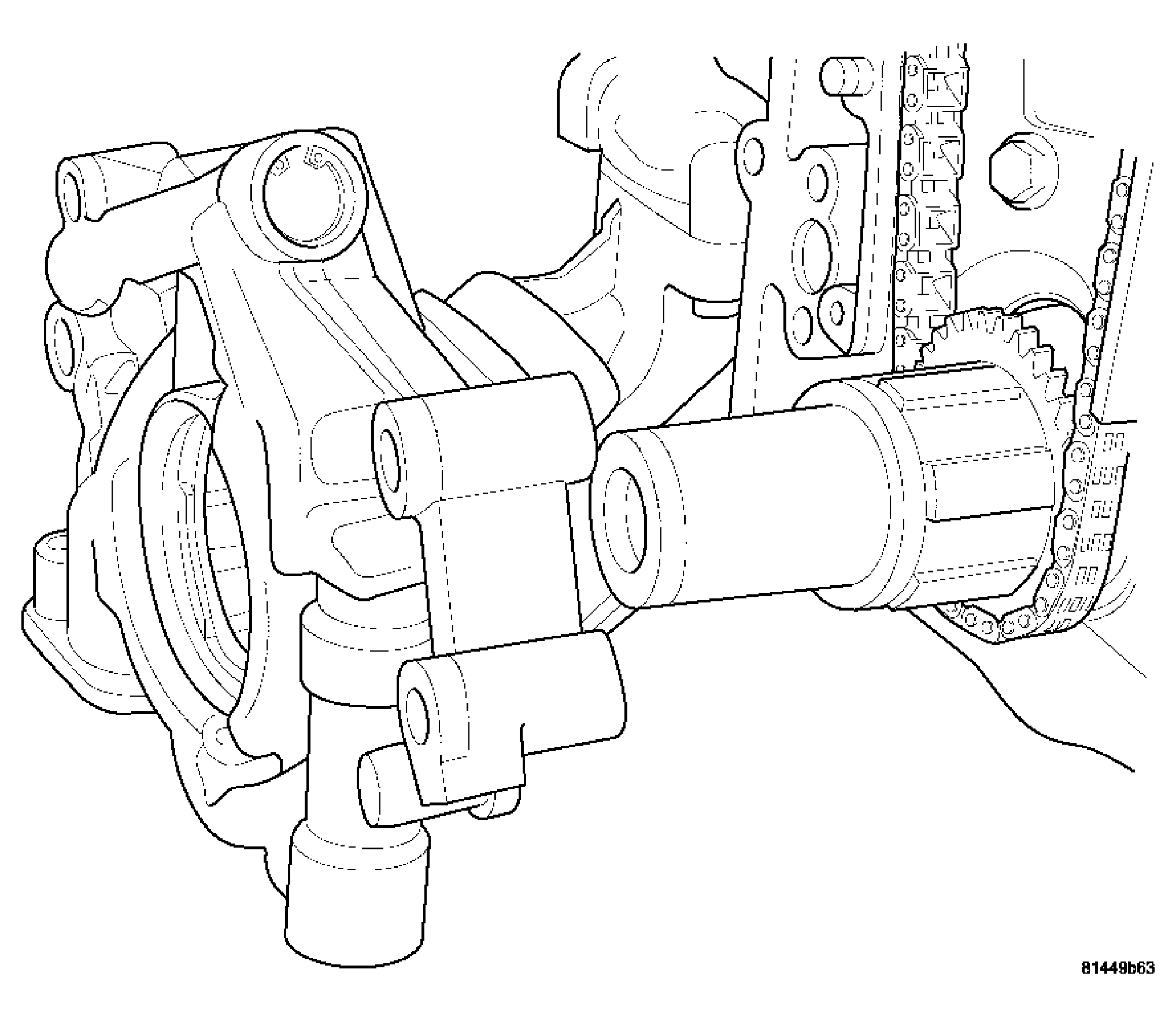

Fig 3: Oil Pump R+I
Courtesy of CHRYSLER LLC
Remove oil pump.

Fig 4: Retracting Tensioner
Courtesy of CHRYSLER LLC

1 - TENSIONER

2 - TENSIONER PIN SPECIAL TOOL # 8514
Retract tensioner shoe (1) until hole in shoe lines up with hole in bracket.

Fig 5: Tensioner Pin
Courtesy of CHRYSLER LLC

1 - Pin

2 - Tensioner

Slide a suitable pin (2) into the holes.

Fig 6: Timing Mark Alignment

Courtesy of CHRYSLER LLC

1 - Chain Tensioner

2 - Camshaft Sprocket

3 - Crankshaft Sprocket

Remove camshaft sprocket attaching bolt and remove timing chain with crankshaft and camshaft sprockets (2).
If tensioner assembly is to be replaced, remove the tensioner to block bolts and remove tensioner assembly.
